|Place of Origin:||Nanjing,China|
|Minimum Order Quantity:||50pcs|
|Packaging Details:||50PCS/CTN(CTN SIZE:510*210*320mm)|
|Delivery Time:||3-15 workdays|
|Payment Terms:||T/T, Western Union|
|Type:||HVAC Systems||Current Load:||3A|
|Thermostat Dimension:||88*88*15mm||Load:||220V±10%,50/60HZ Output Rated|
digital programmable room thermostat,
central air conditioner thermostat
Air conditioner temperature controller energy saving digital room thermostat
SK303 Digital Fan Coil Thermostats are designed to control heating, cooling, or year round air conditioning unit in Commercial, Industrial and Residential Installation. Typical Application includes the control of fan coil units, packaged terminal air conditioners and combination heating and cooling equipment. As part of the system that consists of a two-way or three-way valve and a multi-speed line voltage fan.

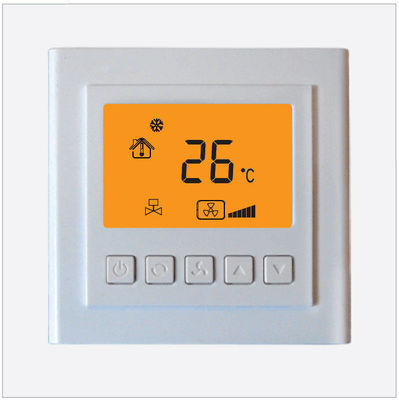

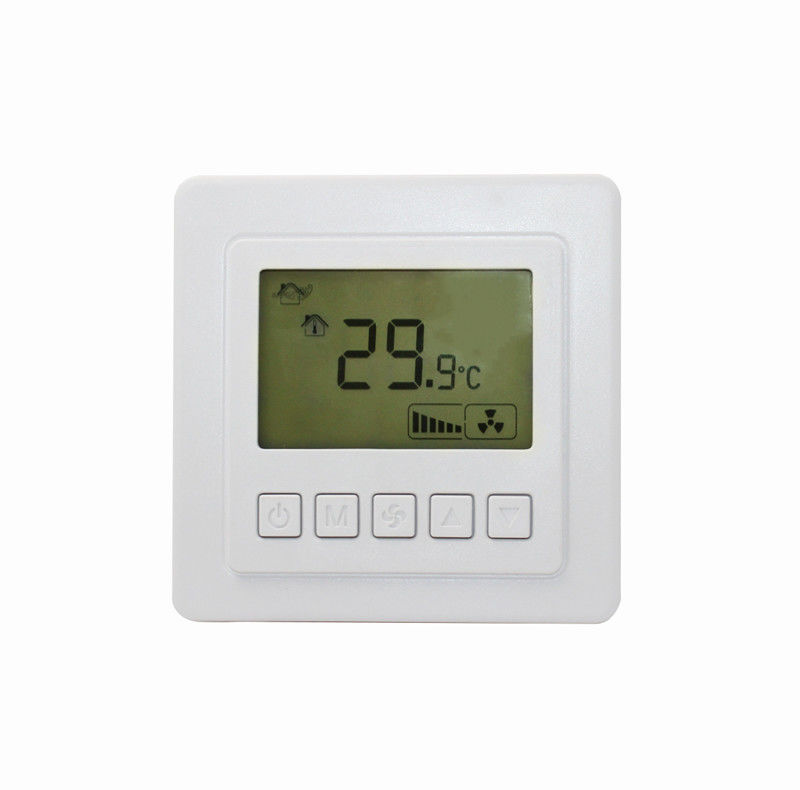

These aesthetic design thermostat features with Backlit Liquid Crystal Display (LCD); an attractive white color in a compact size complements any decor. The thermostat does not require any battery backup as setpoint and other parameters are stored in non- volatile memory. The intuitive operation makes the thermostat very user-friendly.
|Set TEMP range||5-35 ℃||Power supply||220VAC±10%,50/60Hz|
|Accuracy||±1℃||Rated current||Max resistive current 3A|
|Sensor Type||NTC sensor||Power consumption||<2W|
|Ambient Condition||-5-55 ℃||Operating Humidity||5~90%RH (no condensing)|
|Housing Material||PC+ABS Flame Retardant plastics||Dimension ( W × H × D )||86*86*14mm|
|Certificate||CE & ISO9001||Hole pitch||60mm (standard)|
1. The power on and off of the thermostat can be realized through manual operation.
The power on/off condition can be switched through press on/off button.
2. The primary power up of the system is under the power off condition.
1. Press △ or ▽ to adjust the temperature, the flashing default temperature is 20℃;
2. Press △ to increase temperature by 1℃;
3. Press ▽ to decrease temperature by 1℃;
4. The system will exit automatically without any operation in 5 seconds.
When the thermostat is in stand by state, press “” for 3 seconds, while display “XX” ℃ (RT symbol doesn’t show), press “up” or “down” key to adjust the temperature to the correct value, it will accept automatically in 5 seconds.
Press “M” key to select heating or cooling mode.
With each press of the “fan speed key”, the thermostat will change the speed among low, medium, high and auto speed. In Auto” mode, the speed automatically change according to the difference between room temp. and set temp.
When the thermostat is turned on, press “” until the time start flashing, using the up or down key to set the desired time. It will accept automatically in 5 seconds. The thermostat is now set to be turned on/off at the desired time.
