| Place of Origin: | Jiangsu |
| Brand Name: | Saiko |
| Certification: | CE |
| Model Number: | SK91 |
| Minimum Order Quantity: | 64PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 64PCS/CTN (CTN SIZE:435*395*290mm) |
| Delivery Time: | 3-5 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000PCS/WEEK |
| Type: | HVAC Systems | Voltage: | AC230V |
|---|---|---|---|
| Current Load: | 16A | Setting Range: | +5~+90℃ |
| Floor Sensor: | Rubber-thermoplastic NTC Sensor | Housing Material: | Self-extinguishing PC |
| High Light: | touch screen room thermostat,digital touchscreen thermostat |
||

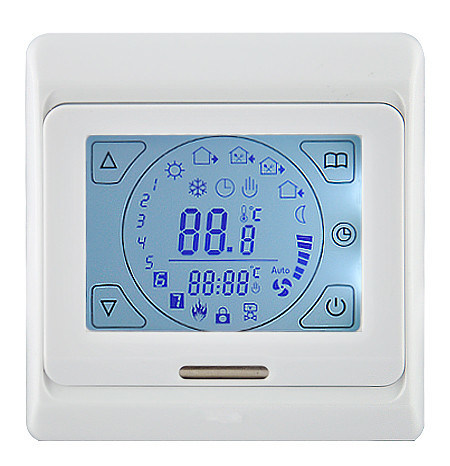

Programmable Touch Screen Room Floor Weekly Heating Thermostat with big LCD screen
Touch Screen Period Programming Thermostat Weekly circulation, it is possible to set 6 periods called events each day with corresponding pre-set temperatures, also you can select "period control mode" or "manual mode" according to your individual requirements. The thermostat is recommended for the control of electric heating devices or on/off valve actuator used in water-based heating systems.
Technical data
| Power Supply | AC200-240VAC 50/60HZ |
| Accuracy | ±0.5ºC |
| Probe sensor | NTC |
| Power Consumption | <0.3W |
| Load current | 3A(water heating),16A(electric heating) |
| Temperature Adjustable Range | 5°C~90°C( can adjust to 35°C~90°C) |
| Limit Temperature Range | 5°C~60°C( factory setting: 35°C) |
| Output | Switch relay |
| Insulating condition | Normal environment |
| Running program | Set per 1 week as a cycle |
| Installation | Wall mounted |
| Application | Water Floor Heating System |
| Electric Floor Heating System | |
| Infrared Heater System | |
| Certificate | CE,RoHS |
Display symbols
Dimensions:mm
Writing Diagram
Packaging & Delivery
Packaging Details
standard packaging,1pc in one white box,64pcs in one carton
Delivery Time
10-15 working days after get payment for Touch Screen Thermostat
