Home ProductsDigital Room Thermostat

LCD Digital Heating Thermostat Replacement 50/60Hz Digital Furnace Thermostat

LCD Digital Heating Thermostat Replacement 50/60Hz Digital Furnace Thermostat

    • LCD Digital Heating Thermostat Replacement 50/60Hz Digital Furnace Thermostat
    • LCD Digital Heating Thermostat Replacement 50/60Hz Digital Furnace Thermostat
    • LCD Digital Heating Thermostat Replacement 50/60Hz Digital Furnace Thermostat
    • LCD Digital Heating Thermostat Replacement 50/60Hz Digital Furnace Thermostat
    • LCD Digital Heating Thermostat Replacement 50/60Hz Digital Furnace Thermostat
  • LCD Digital Heating Thermostat Replacement 50/60Hz Digital Furnace Thermostat

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: Saiko
    Certification: CE
    Model Number: SK301

    Payment & Shipping Terms:

    Minimum Order Quantity: 50PCS
    Price: Negotiation
    Packaging Details: 50PCS/CTN(CTN SIZE:480*320*250mm)
    Delivery Time: 10 workdays
    Payment Terms: T/T, Western Union
    Supply Ability: 3000PCS/WEEK
    Contact Now
    Detailed Product Description
    Prooduct Name: LCD Digital Electronic Room Thermostat Color: White
    Power Supply: 230VAC, 50/60Hz Mode: Heat/Cool/Vent
    Dimension: 86*86*14mm Material: Best Qulaity Fresh PC ABS Plastics

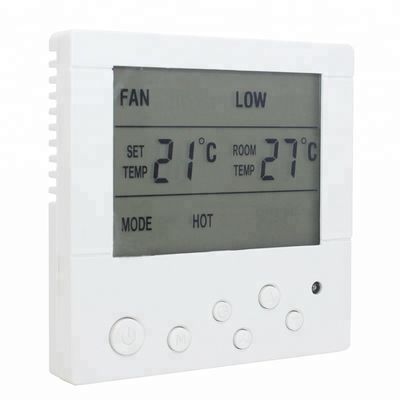

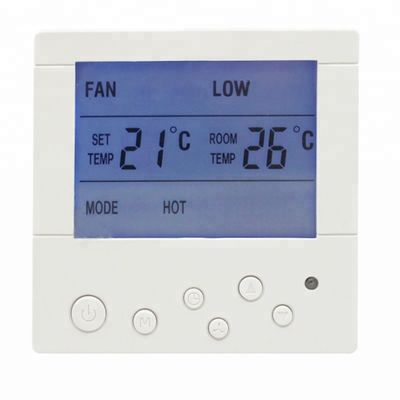

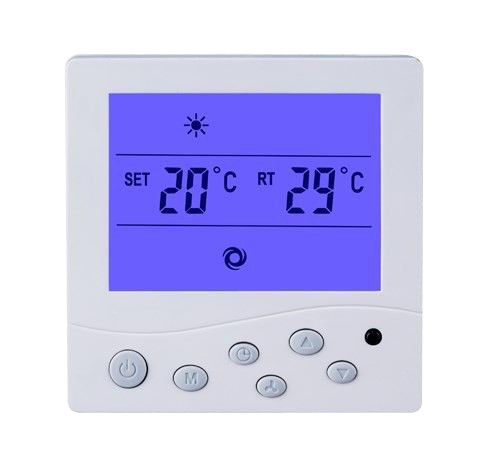

    LCD Digital Electronic Room Thermostat



    Introduce

    SK301 is a high-end smart thermostat that with large graphic LCD screen and capacitive touch keys.
    This product can control the fan coil unit, air conditioner, the fan of heating device, air valve, air valve,

    heater and other equipments.



    Feature
    Large size LCD display for better read

    • Microprocessor based

    • Reliable separate power unit

    • Clear back light illumination

    • Time display and week day display

    • Adjustable High/medium/low/Auto fan speed

    • Heat / Cool selection

    • Customizing available





    Specification

    Power supply
     230VAC 50/60HZ
    Standby consumption: <0.5W
    Maximum consumption: <2W
    Outputs
    Up to 5 relays
    Load current: rated current 1A, surge current 3A
    User Interface
    5 backlit capacitive touch keys
    Backlit 128*64 B/W graphic LCD
    Standby time of battery
    8 hours
    Temperature
    Setting temperature: 5-35℃
    Environmental temperature: 0-50℃
    Precision: ±1℃
    Probe: NTC
    Installation
    CCC(86mm*86mm)
    CE(86mm*86mm)
    Wiring
    2 power-supply wirings
    5 ways output wirings
    Cross-sectional area of conductor:
    1 * 1.0 mm² ~ 1 * 2.5 m²



    Packaging & Delivery

    Packaging Details Inner packing: 1 pcs / paper box for digital room thermostat
    Outer packing: 50 pcs/ carton for digital room thermostat
    Carton size: 47.5*32*24.5 CM
    Volume: 0.038cbm/carton
    Groos weight: 15.00KG/ carton
    Delivery Time Less than 20000pcs of room thermostat, in 15 days;



    Writing Diagram

    LCD Digital Heating Thermostat Replacement 50/60Hz Digital Furnace Thermostat
