Programmable Heating Thermostat For Floor Heating , CE Approval

Programmable Heating Thermostat For Floor Heating , CE Approval

    • Programmable Heating Thermostat For Floor Heating , CE Approval
    • Programmable Heating Thermostat For Floor Heating , CE Approval
    • Programmable Heating Thermostat For Floor Heating , CE Approval
    • Programmable Heating Thermostat For Floor Heating , CE Approval
    • Programmable Heating Thermostat For Floor Heating , CE Approval
  • Programmable Heating Thermostat For Floor Heating , CE Approval

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: Saiko
    Certification: CE
    Model Number: SK82

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiation
    Packaging Details: 1pc/inner box, 50pcs/carton
    Delivery Time: 10 WORKDAYS
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 8000PCS/Month
    Contact Now
    Detailed Product Description
    Type: Floor Heating Systems Voltage: 220V/230V
    Setting Range: 5-90℃ (can Adjust To 35-90 ℃) External Limitation: 5...60℃(Factory Setting: 35℃)
    Housing Material: Anti-flammable PC Installation: Wall Mounted Installation
    Color: Green Protective Housing: IP20

    Heated Floor Touch Screen Color Thermostat Weekly Programmable Thermostat





    Weekly circulation digital programming thermostat with LCD screen, which has 6-event everyday. Manual mode and programme mode could be selected.

    For the control of warm-water(floor) heating systems and direct electric heatings systems used in Commercial buildings, Residential buildings, Light industrial buildings.



    The SK82 series Heating room Thermostat has been developed to control electric underfloor . These units are designed for use in commercial, industrial, civil and domestic properties.
    Now you don't need to choose between saving money or staying comfortable. The thermostat can help you save up energy costs every year when you use a pre-set heating program schedule. When you use our intuitive mobile app, you can adjust your room thermostat schedule around your life, so you're not needlessly heating an empty home.





    Programming
    Choice of 7 day, 5/2 day programmable or
    non-programmable (installer selectable);
    6 time and 4 temperature settings every day;
    pre-programmed or personalized schedule;
    Energy saving up to 33%



    Display


    Large, touchscreen display;
    European standard installation box;
    White lighted display for easier low-light viewing;
    Larger, easy-to-read character size;
    Clean, uncluttered touchscreen display provides;
    Easier navigation;
    Comfort & Convenience
    Intuitive menu-driven set-up, programming and operation;
    Permanent program retention during power loss;
    Setpoint temperature limited range capable;
    Enhanced touchscreen security prevents tampering;
    Can switch upto 16 amps (230v);

    Temperature display resolution: 0.5 C;




    A / AF/ F models all in one
    Combination of 3 models;
    A - Air only, with built-in sensor;
    F - Floor only,controls floor temperature;
    AF - Controls air temperature with ability to limit the
    floor temperature

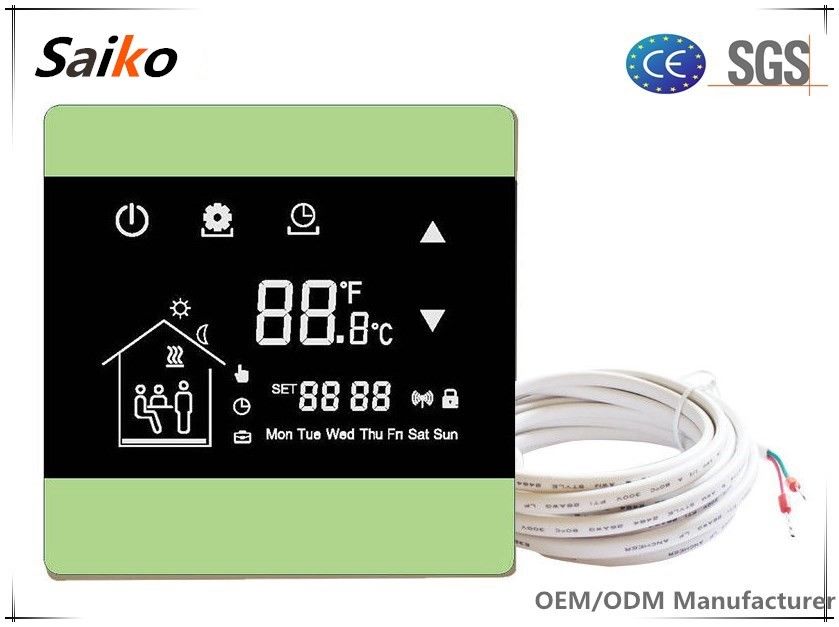

    Each thermostat is equipped with built-in sensor
    and a 3 meter floor sensor. The floor sensor can be extended.



    Specifications



    Power supply 230VAC (120VAC optional)
    Inputs 2 x NTC10K temperature sensors
    Output 1 x switch relay(R1),max 3500watts
    Ambient temperature 0 °C [+32 °F] ~ +45 °C [+113 °F]
    Operating RH 0~95% (non condensing)
    Dimensions 86mm x 86mm x14mm
    Backlight life 5,000 hours




    Useful settings
    Vacation mode(frost protection mode)
    Switching differential setting
    Floor temperature limit


    Packing details
    1pc/inner box, 50pcs/carton
    Carton size: 51x22x36cm



    Wiring diagram

    Programmable Heating Thermostat For Floor Heating , CE Approval
