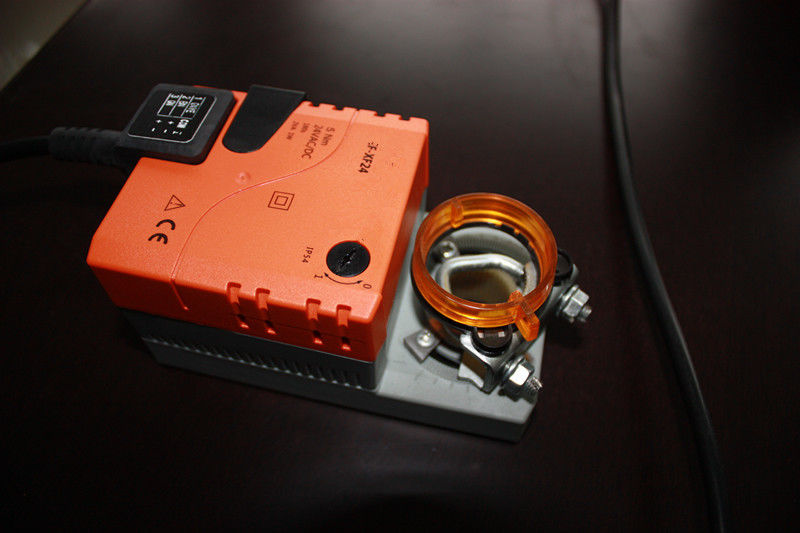

General Damper Motorised Control Valve Actuator Class Ⅲ Safety Protection

General Damper Motorised Control Valve Actuator Class Ⅲ Safety Protection

General Damper Motorised Control Valve Actuator Class Ⅲ Safety Protection

Product Details:

Place of Origin: Nanjing
Brand Name: SAIKO
Certification: CE
Model Number: SK-XF24

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Delivery Time: 5-8 workdays
Payment Terms: Western Union, T/T
Supply Ability: 500Set/month
Contact Now
Detailed Product Description
Structure: Electric Damper Actuator Power: Electric
Torque: 5Nm Voltage: AC24V 50/60Hz;DC24V
Protect Class: IP54 Control Signal: Two Type, Single Line

HVAC System Motorized Modulating General Damper Actuator 2-point and 3-point



Damper actuators for operating air control dampers in ventilation and air-conditioning systems for building services installations.



5 Nm, 150 s, 95°
AC / DC 24 V, Open/Close, 3-point, 1 x SPDT
IP 54, Manual override with push-button
Connection PVC cable 1m
Direction of rotation reversible (right/left)
Angle of rotation limit. mechanical integral
Spindle driver universal spindle clamp
Rating 1 mA...3(0.5)A, AC 250 V​



Electrical data

Nominal voltage AC 24V, 50/60Hz, DC 24V

Nominal voltage range AC/DC 19.2 …28.8V

Power consumption In operation 1 W @ nominal torque

At rest 0.2W

Auxiliary switch 1×SPDT, 1mA…3(0.5)A, AC250V

(0…100% adjustable)

Connection Motor Cable 1m, 3×0.75mm2



Functional data

Torque (nominal torque) Min.5Nm @ nominal voltage

Direction of rotation Reversible with switch

Manual override Gearing latch disengaged with pushbutton, self-resetting

Angle of rotation Max.95°, limited on both sides by means of adjustable,mechanical end stops

Running time 150 s

Sound power level Max.35Db (A)



Safety

Protection class Ⅲ Safety extra-low voltage

Degree of protection IP54 in any mounting position

EMC CE according to 89/336/EEC

Mode of operation Type 1(to EN60730-1)

Ambient temperature range -30…+50℃

Ambient humidity range 95% r.H., non-condensating(EN 60730-1)

Maintenance Maintenance-free



Weight Approx.500g



Dimension

General Damper Motorised Control Valve Actuator Class Ⅲ Safety Protection



Writing Diagram

General Damper Motorised Control Valve Actuator Class Ⅲ Safety Protection
