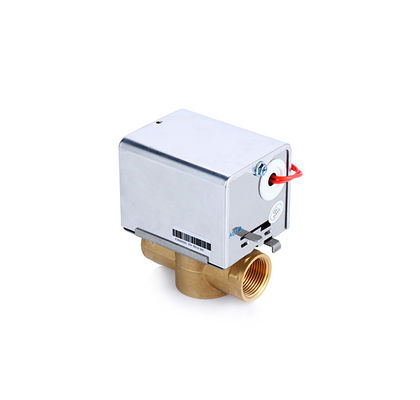

Motorised 3 Way Diverter Valve Central Heating Spring Return For Fan Coil

Motorised 3 Way Diverter Valve Central Heating Spring Return For Fan Coil

    • Motorised 3 Way Diverter Valve Central Heating Spring Return For Fan Coil
    • Motorised 3 Way Diverter Valve Central Heating Spring Return For Fan Coil
    • Motorised 3 Way Diverter Valve Central Heating Spring Return For Fan Coil
    • Motorised 3 Way Diverter Valve Central Heating Spring Return For Fan Coil
    • Motorised 3 Way Diverter Valve Central Heating Spring Return For Fan Coil
  • Motorised 3 Way Diverter Valve Central Heating Spring Return For Fan Coil

    Product Details:

    Place of Origin: Nanjing,China
    Brand Name: SAIKO
    Certification: CE
    Model Number: SKC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiation
    Packaging Details: 1pc/inner box, 20pcs/carton
    Delivery Time: 5 workdays
    Supply Ability: 20000PCS/Month
    Contact Now
    Detailed Product Description
    Structure: Standard Pressure: 1.6MPa
    Power: AC24, AC110, AC220V Material: Brass
    Connection: Male Thread Liquid Temperature: 1~95°C
    High Light:

    heating motorised valve

    ,

    motorised water valve

    3 way motorised zone valve with spring return for fan coil



    SKC Series Electric Two-Way Valve is applied to on-off control for HVAC water system, is composed of driver and valve body. The valve body is casted with excellent brass and the driver is made of flame-retardant engineering plastic, with limit switch inside and manual valve opening mechanism, is easy to debug and test pressure. In which, B type driver has built-in relay, could realize one-line control and multi-valve parallel, match with various temperature control switches.



    Technical data
    ◆ Driving voltage:220VAC 50Hz/60Hz (12V,24V,110V are available for choice)
    ◆ Power consumption:5VA (Only in the course of open and close)
    ◆ Pressure-bearing of valve body:1.6MPa
    ◆ Allowance pressure:0.6MPa
    ◆ Applicable medium:cool water and hot water
    ◆ Open and close time:about 16 s for open,about 16 s for close
    ◆ Temperature of applicable medium:1-95℃
    ◆ Applicable environment temperature:0-65℃
    ◆ Connection manner:ZG internal pipe thread (could be custom made)

    Character of structure
    ◆ Inlay contact switch, the motor is power off after the valve completes open and close, so it has long service life and power saving, but is also safe.
    ◆ The valve body is separated with driver, could be disassembled rapidly.
    ◆ The valve body structure is unique, is allowed of big pressure difference.
    ◆ The driver has manual controller is available for system debugging and maintenance, the manual opening is about 70% (push down the white driving arm to the bottom, and then push inside, when the power is recovered, the valve and driver will return to automatic position)
    ◆ B type driver has inlay relay, one-line control and three-speed switch, realize multi valves parallel, and match with various temperature control switches. (special for four-pipe)
    ◆ Select ordinary driver, one temperature controller matches only one electric vale, or any results caused will be nothing with manufacturer.
    Points for installation:
    ◆ Please read this instruction carefully before installation, ask professional to perform installation and connect according to wiring diagram.
    ◆ The electric valve should be installed to the place with certain distance from around articles, but also could be reached by maintenance person. No electric equipments are allowed to install under the valve body, as to avoid leakage and danger. The driver shall be above the valve body horizontally.
    ◆ Clear up the sundries in the pipe before installation, install 50 mu (or thinner) filter in the front end of electric valve.




    Models

    Model Port Size L H Kv
    SC215



    2-way

    1/2’’ DN15 90 114 4.5
    SC220 3/4” DN20 95 116 5.7
    SC225 1” DN25 105 128 8.7
    SC315



    3-way

    1/2’’ DN15 90 133 4.3
    SC320 3/4” DN20 95 133 5.5
    SC325 1” DN25 105 144 8.3



















    Wiring diagram and schematic diagram of relevant circuit



    Motorised 3 Way Diverter Valve Central Heating Spring Return For Fan Coil

    Appearance, section and main dimension



    Motorised 3 Way Diverter Valve Central Heating Spring Return For Fan Coil

    Installation diagram

    Motorised 3 Way Diverter Valve Central Heating Spring Return For Fan Coil





    Contact Details
    Nanjing Saiko Controls Co.Ltd

    Contact Person: Mr. James Zhang

    Tel: 86-25-52128536

    Fax: 86-25-56216123
