    Product Details:

    Place of Origin: Jiangsu
    Brand Name: Saiko
    Certification: CE
    Model Number: E31.116

    Payment & Shipping Terms:

    Minimum Order Quantity: 64PCS
    Price: Negotiation
    Packaging Details: inner box: neutral packing with label; 64pcs/ctn
    Delivery Time: 10 workdays
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 10000PCS/WEEK
    Contact Now
    Detailed Product Description
    Type: Floor Heating Systems Voltage: 220V-240V
    Power Consumption: 2W Sensor: NTC Internal/external Sensor
    Setting Range: 5-35℃ Switch Differential: 0.5-10 Adjustable

    Easy Heated Floor Digital Temperature Control Electric Heating Thermostat

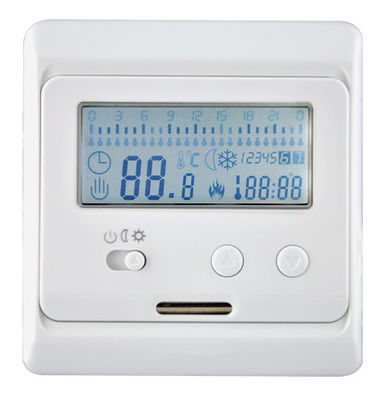

    Heating thermostat with LCD screen, which has manual mode and energy saving mode. The thermostat is recommended for the control of electric heating device or on/off valve actuator in hydronic underfloor heating.



    Technical data

    Voltage: 220V-240V

    Power Consumption: 2W

    Setting Range: 5-35℃(Can adjust to 5-90℃)

    External limitation: 5...60℃(Factory setting: 35℃)

    Sensor: NTC internal/external sensor

    Switch differential: 0.5-10 ℃adjustable (Factory setting: ±1℃)

    Ambient temperature:-5-50℃

    Protection housing: IP20

    Housing material: Anti-flammable PC





    Selection Table

    Model Number Current Application
    E31.113 3A Built-in&floor sensor, floor limit sensor
    E31.123 3A Built-in&floor sensor, floor limt sensor, a potential-free output
    E31.116 16A Built-in&floor sensor, floor limit sensor

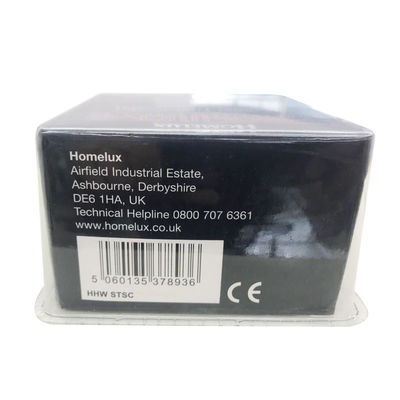

    Package

    Individual white box and outer carton, 64pcs in one carton

    IP20 Heated Floor Thermostat , Floor Digital Easy Heat Thermostat Replacement

    IP20 Heated Floor Thermostat , Floor Digital Easy Heat Thermostat Replacement



    Wiring Diagram

    IP20 Heated Floor Thermostat , Floor Digital Easy Heat Thermostat Replacement
