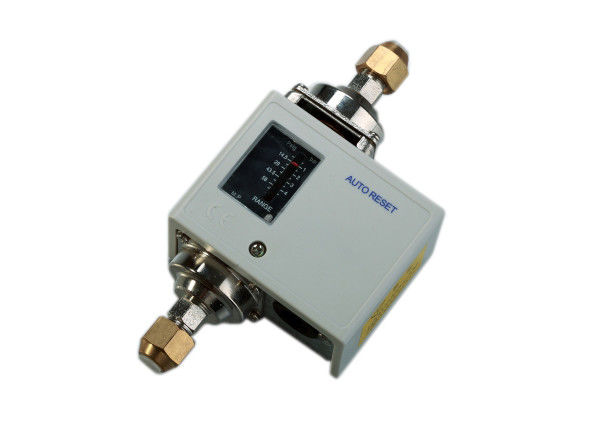

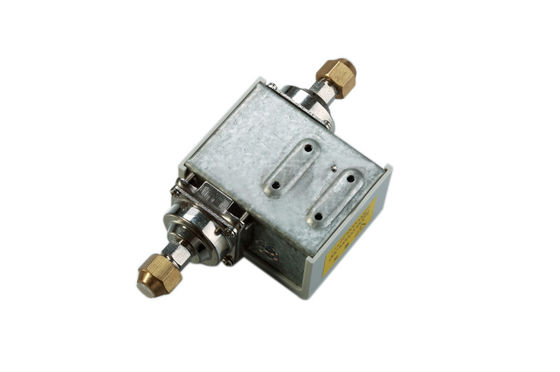

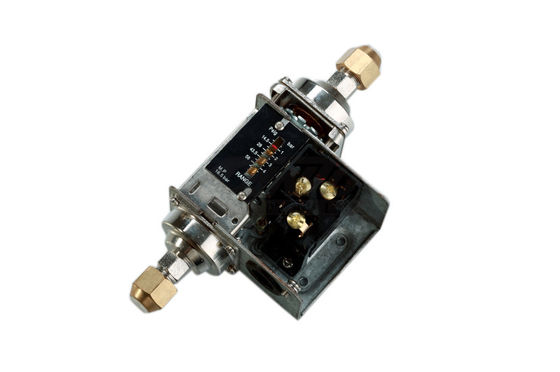

Air Condition HVAC Controls Products Differential Pressure Controller With SPDT Contact

Air Condition HVAC Controls Products Differential Pressure Controller With SPDT Contact

    • Air Condition HVAC Controls Products Differential Pressure Controller With SPDT Contact
    • Air Condition HVAC Controls Products Differential Pressure Controller With SPDT Contact
    • Air Condition HVAC Controls Products Differential Pressure Controller With SPDT Contact
  • Air Condition HVAC Controls Products Differential Pressure Controller With SPDT Contact

    Product Details:

    Place of Origin: Nanjing
    Brand Name: Saiko
    Certification: CE
    Model Number: SKDP88

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiation
    Packaging Details: Individual packing
    Delivery Time: 20 workdays
    Supply Ability: 5000PCS/month
    Contact Now
    Detailed Product Description
    Product Name: Differential Pressure Controller Connection Type: SAE, ODF Or Capillary Tube
    Max. Current: 8A Max. Voltage: 250VAC
    Adjustable Range: Min:0.5 Max:2 Max.Bellows Press: 17bar
    High Light:

    commercial hvac controls

    ,

    hvac system equipment

    Differential Pressure Controller with SPDT Contact for Air Condition



    SKDP88 differential pressure control is normally used in gas or liquid system to control the pressure difference between the gas/liquid pipeline and the circuit. A typical application is to install the controller in the bypass pipeline near the system pump. When the system pressure difference increases and exceeds pre-set pressure, the control valve will open and more liquid/gas goes through the side valve, which will reduce the pressure differential between these two pipes of the water system. On the opposite, the pressure differential will increase between these two pipes of the water system.



    Performance

    The set point can be determined quickly through the direct-reading scale.

    The pressure difference setting can be changed without moving the cover.



    Electrical parameter

    Switch connection ratings: 5amp 125/250VAC 1/4 H.P., 125VAC Fine Silver Contacts.



    Technical parameter (SKDP88B)

    Adjustable range: 0.06MPa ~ 0.35MPa (factory set: 0.1Mpa).

    Burst Pressure: 1.7Mpa

    Temperature: ≤85℃

    Repeatability: ≤1.5%

    Setting accuracy: ≤5%

    Life of switch: ≥ 50 thousands times

    Max.△P: 0.2bar

    Operating differential pressure: 0.02Mpa (fixed)



    Type and specification: Unit: Mpa

    Type Range MOP
    SKDP88S 0.01~0.06 0.50
    SKDP88A 0.03~0.20 1.50
    SKDP88B 0.06~0.35 1.50
    SKDP88D 0.2~1.2 3.0























    Dimension

    Air Condition HVAC Controls Products Differential Pressure Controller With SPDT Contact
