Home ProductsHeated Floor Thermostat

Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat

Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat

    • Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat
    • Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat
    • Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat
    • Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat
  • Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: Saiko
    Certification: CE
    Model Number: SK31

    Payment & Shipping Terms:

    Minimum Order Quantity: 64PCS
    Price: Negotiation
    Packaging Details: inner box: neutral packing with label; 64pcs/ctn
    Delivery Time: 10 workdays
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 10000PCS/WEEK
    Contact Now
    Detailed Product Description
    Type: Floor Heating Systems Voltage: 230V, 50Hz
    Power Consumption: 2W Sensor: NTC Internal/external Sensor
    Setting Range: 5-95℃ Switch Differential: 0.5-10 Adjustable
    High Light:

    electric underfloor heating thermostat

    ,

    underfloor heating programmable thermostat

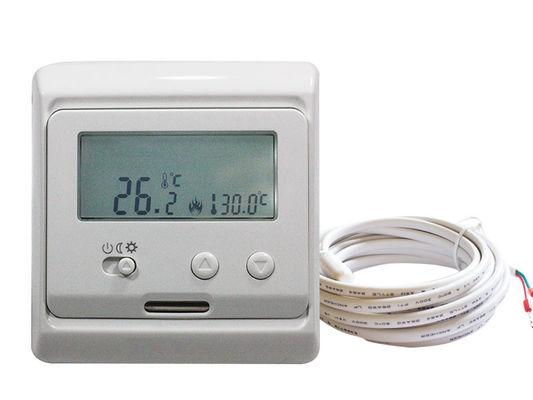

    Easy Heated Floor Digital Heating Temperature Control Electric Heating Thermostat



    Heating thermostat with LCD screen, which has manual mode and energy saving mode. The thermostat is recommended for the control of electric heating device or on/off valve actuator in hydronic underfloor heating.



    Technical data



    Voltage: 220V-240V

    Power Consumption: 2W

    Setting Range: 5-35℃(Can adjust to 5-90℃)

    External limitation: 5...60℃(Factory setting: 35℃)

    Sensor: NTC internal/external sensor

    Switch differential: 0.5-10 ℃adjustable (Factory setting: ±1℃)

    Ambient temperature:-5-50℃

    Protection housing: IP20

    Housing material: Anti-flammable PC

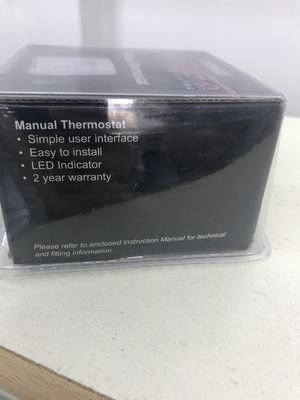

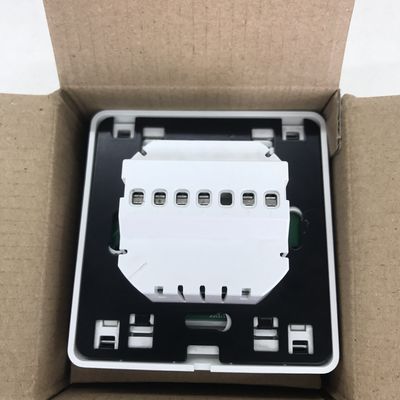

    Package



    Individual white box and outer carton, 64pcs in one carton





    Dimension:mm

    Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat

    Display symbol

    Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat

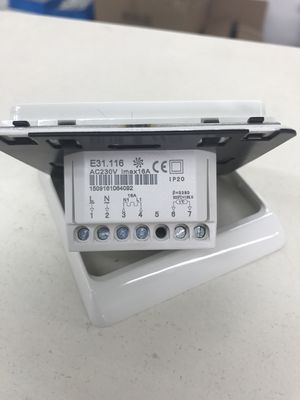

    Wiring Diagram

    Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat



    Sensor failure



    Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated.
