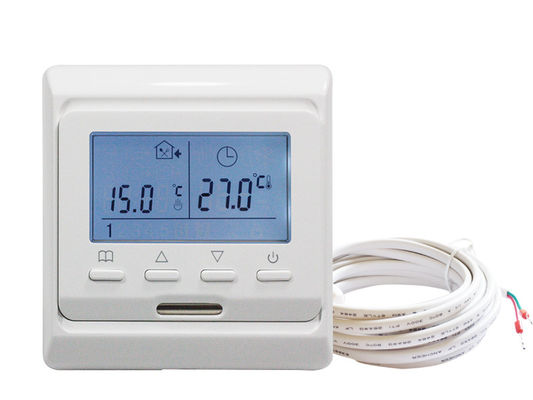

Programmable Room Heated Floor Thermostat 16A NTC Sensor With PC Housing

Programmable Room Heated Floor Thermostat 16A NTC Sensor With PC Housing

    • Programmable Room Heated Floor Thermostat 16A NTC Sensor With PC Housing
    • Programmable Room Heated Floor Thermostat 16A NTC Sensor With PC Housing
    • Programmable Room Heated Floor Thermostat 16A NTC Sensor With PC Housing
    • Programmable Room Heated Floor Thermostat 16A NTC Sensor With PC Housing
  • Programmable Room Heated Floor Thermostat 16A NTC Sensor With PC Housing

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: Saiko
    Certification: CE
    Model Number: SK51

    Payment & Shipping Terms:

    Minimum Order Quantity: 64PCS
    Price: Negotiation
    Packaging Details: 64PCS/CTN (CTN SIZE:435*395*290mm)
    Delivery Time: 3-5 workdays
    Payment Terms: T/T, Western Union
    Supply Ability: 3000PCS/WEEK
    Contact Now
    Detailed Product Description
    Type: Floor Heating Systems Voltage: AC230V, 50Hz
    Current Load: 16A Setting Range: +5~+90℃
    Floor Sensor: Rubber-thermoplastic NTC Sensor Housing Material: Self-extinguishing PC

    Electronic weekly programmable room thermostat for floor heating
    Weekly circulation, it is possible to set 6 periods called events each day with different temperatures, also you can select "manual mode" or "temporary control mode" according to your individual requirements. The thermostat is recommended for the control of electric heating devices or on/off valve actuator used in water-based heating systems.


    Features
    Switches on your heating system at predetermined times on different days of the work.
    Comes with a preprogrammed schedule that is suitable for most installations. However, you can customize this program any time you wish.
    Allows you to reset the thermostat to factory settings.
    Technical data
    Power SupplyAC200-240VAC 50/60HZ
    Accuracy±0.5ºC
    Probe sensorNTC Sensor
    Power Consumption<1W
    Load current3A(water heating),16A(electric heating)
    Temperature Adjustable Range5°C~90°C( can adjust to 35°C~90°C)
    Limit Temperature Range5°C~60°C( factory setting: 35°C)
    OutputSwitch relay
    Insulating conditionNormal environment
    Running programSet per 1 week as a cycle
    InstallationWall mounted
    ApplicationWater Floor Heating System
    Electric Floor Heating System
    Infrared Heater System
    CertificateCE,RoHS


    Selection Table

    SK51.7133ABuilt-in& floor sensor, floor limit sensor, weekly programming
    SK51.7233ABuilt-in& floor sensor, floor limit sensor, weekly programming. A potential-free output
    SK51.71616ABuilt-in& floor sensor, floor limit sensor, weekly programming


    Advanced setting (qualified person preferred)
    When the thermostat is turned off, You can press"Menu" and turn on it at the same time ,then you can enter the mode of advanced setting.


    SymbolSetting Up or Down
    1ADJTemperature calibration

    Adjust measured temperature


    2SENSensor mode

    IN: built-in sensor
    OUT: floor sensor
    ALL: both sensors

    3.LITLimitation temperature

    Adjust limitation value,
    Limitation range:5℃~60℃

    4DIF

    Switching
    differential

    Adjust switching differential
    5LTPAntifreeze functionTurn on/off Anti-frozen function
    6PRGSet vacation mode

    00: 5/2 day mode

    01: 6/1 day mode
    02: 7 day mode

    7RLEPotential- free output and main power output in the same/different way

    Change the present

    linkage way

    8DLYDelay time of Potential- free outputChange linkage delay time
    9HITMax temperatureLimitation temperature setpoint
     AFACReset to factory settingsPress"Programmable Room Heated Floor Thermostat 16A NTC Sensor With PC Housing"and hold for 5s,all parameters will be reset


    Programmable Room Heated Floor Thermostat 16A NTC Sensor With PC Housing
    Programmable Room Heated Floor Thermostat 16A NTC Sensor With PC Housing
    Programmable Room Heated Floor Thermostat 16A NTC Sensor With PC Housing

    Sensor failure
    Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated
