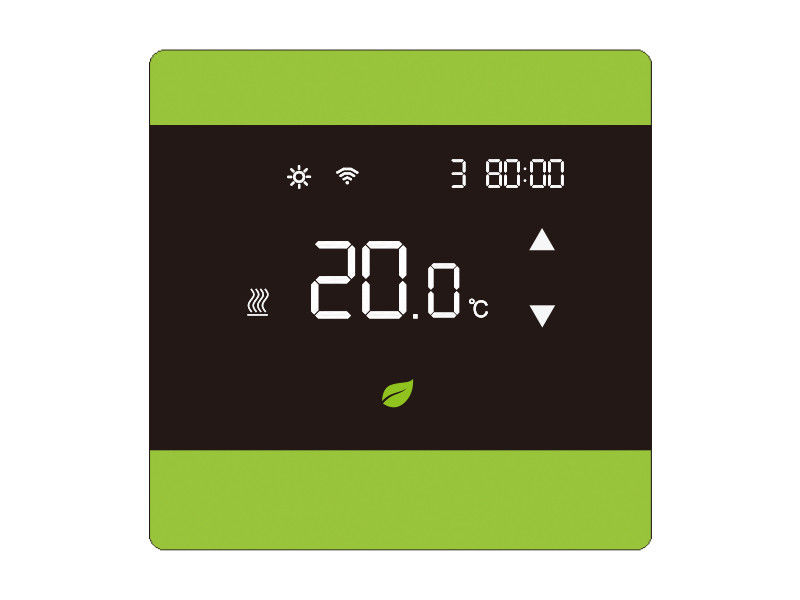

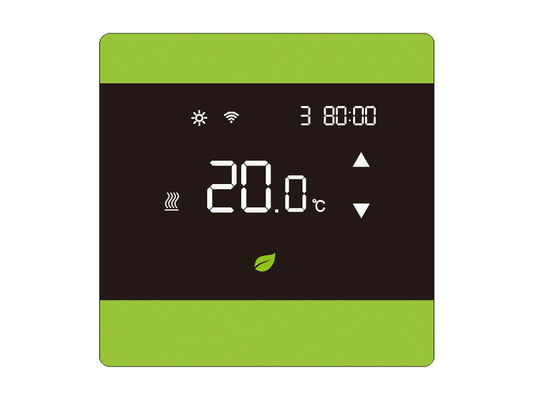

LCD Touch Screen Heating Thermostat NTC Sensor With Setting Range 5-35℃

LCD Touch Screen Heating Thermostat NTC Sensor With Setting Range 5-35℃

    • LCD Touch Screen Heating Thermostat NTC Sensor With Setting Range 5-35℃
    • LCD Touch Screen Heating Thermostat NTC Sensor With Setting Range 5-35℃
  • LCD Touch Screen Heating Thermostat NTC Sensor With Setting Range 5-35℃

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: Saiko
    Certification: CE
    Model Number: SK82

    Payment & Shipping Terms:

    Minimum Order Quantity: 50PCS
    Price: Negotiation
    Packaging Details: 1pc/inner box, 50pcs/carton
    Delivery Time: 10 WORKDAYS
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 8000PCS/WEEK
    Contact Now
    Detailed Product Description
    Type: Floor Heating System Voltage: 230V,50Hz
    Setting Range: 5-35℃ External Limitation: 5-60℃
    Housing Material: Anti-flammable PC Accuracy: 1ºC

    LCD touch screen electric floor heating thermostats

    Weekly circulation digital programming thermostat with LCD screen, which has 6-event everyday. Manual mode and programme mode could be selected. The thermostat is recommended for control of electric heating devices or on/off valve actuator used in hydronic floor heating.



    Programming
    Choice of 7 day, 5/2 day programmable or
    non-programmable (installer selectable);
    6 time and 4 temperature settings every day;
    pre-programmed or personalized schedule;



    Display
    Large, touchscreen display;
    European standard installation box;
    White lighted display for easier low-light viewing;
    Larger, easy-to-read character size;

    Intuitive menu-driven set-up, programming and operation,
    Permanent program retention during power loss;
    Setpoint temperature limited range capable;
    Enhanced touchscreen security prevents tampering.
    Can switch upto 16 amps (230v)


    A / AF/ F models all in one
    Combination of 3 models;
    A - Air only, with built-in sensor;
    F - Floor only,controls floor temperature;
    AF - Controls air temperature with ability to limit the
    floor temperature
    Each thermostat is equipped with built-in sensor
    and a 3 meter floor sensor. The floor sensor can be extended.



    Sensor failure
    Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated.



    Specifications

    Power Supply AC200-240VAC 50/60HZ
    Accuracy ±0.5ºC
    Probe sensor NTC
    Power Consumption <1W
    Load current 3A(water heating),16A(electric heating)
    Temperature Adjustable Range 5°C~60°C( can adjust to 35°C~60°C)
    Limit Temperature Range 5°C~60°C( factory setting: 35°C)
    Output Switch relay
    Insulating condition Normal environment
    Running program Set per 1 week as a cycle
    Installation Wall mounted
    Application Water Floor Heating System
    Electric Floor Heating System
    Infrared Heater System
    Certificate CE,RoHS


    Useful settings
    Vacation mode(frost protection mode)
    Switching differential setting
    Floor temperature limit



    Writing

    LCD Touch Screen Heating Thermostat NTC Sensor With Setting Range 5-35℃



    Sensor failure
    Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated.



    Packaging Details UNIT WEIGHT: 0.35KG/PC;
    64 PCS/CTN;
    GROSS WEIGHT: 22.4KG;
    PAPER BOX PACKING;
    BOX DIMENSION: 42*40*29CM
    Delivery Detail Shipped in 15 days after payment
