Professional Custom Heated Floor Thermostat NTC Sensor For HVAC System

Professional Custom Heated Floor Thermostat NTC Sensor For HVAC System

    • Professional Custom Heated Floor Thermostat NTC Sensor For HVAC System
    • Professional Custom Heated Floor Thermostat NTC Sensor For HVAC System
    • Professional Custom Heated Floor Thermostat NTC Sensor For HVAC System
    • Professional Custom Heated Floor Thermostat NTC Sensor For HVAC System
  • Professional Custom Heated Floor Thermostat NTC Sensor For HVAC System

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: Saiko
    Certification: CE,RoHs
    Model Number: SK50

    Payment & Shipping Terms:

    Minimum Order Quantity: 64 pcs
    Price: FOB $9.5~$10.5
    Packaging Details: 64 pcs in one carton
    Delivery Time: 10 workdays
    Payment Terms: Western Union, T/T,Paypal
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Product Name: Thermoregulator OEM: OEM
    Application: HVAC System Transport Package: Paper Box
    Guarantee Period: 1 Year Usage: Floor Heating
    High Light:

    electric underfloor heating thermostat

    ,

    underfloor heating room thermostat



    Application:



       Weekly Programming Thermostat with LCD Screen, it is possible to set 6 perids called events each day with different temperature, also you can select " temperature control mode " or " manual mode " according to your requirments, the thermostat is recommended for the control of electric heating devices or on/off valve actuator used in water-based heating system.



    Features:



    1) 7-day programmable function for energy-saving operation
    2) On/off control output for heating device
    3) Symbol indicator when heating is on
    4) Mechanical switch key for power supply
    5) Temperature limitation function for protecting the floor
    6) 7-day time maintenance in the event of a power failure
    7) Large size LCD display for better readout
    8) "Key-lock" function for protecting the set parameters (especially suitable for Public places)



    Parameters:


    Voltage 220V/230V
    Power consumption 2W
    Housing material Self-extinguishing
    Setting range 5~90ºC
    Protective housing IP20



    Dimension:

    Professional Custom Heated Floor Thermostat NTC Sensor For HVAC System

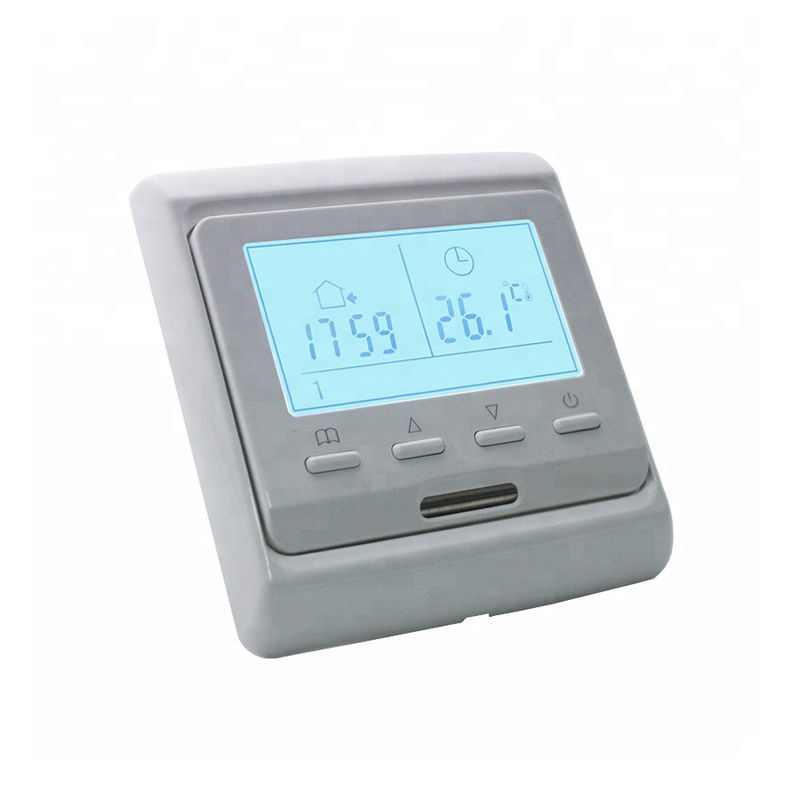

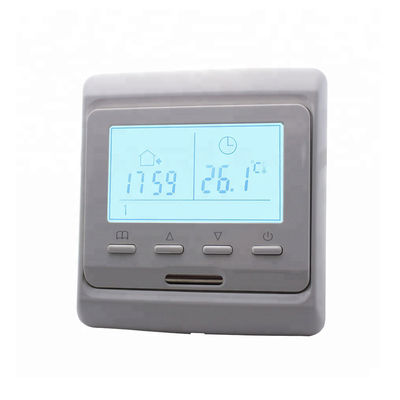

    Display:

    Professional Custom Heated Floor Thermostat NTC Sensor For HVAC System

    Sensor failure:



     E0:Built-in sensor short-circuited or disconnected.

     E1:Built-in sensor short-circuited or disconnected.

     When shows E0/E1 error,thermostat must be checked till thr error is eliminated.



    Wiring diagram:

    Professional Custom Heated Floor Thermostat NTC Sensor For HVAC System



    Picture of circuit board:



    Professional Custom Heated Floor Thermostat NTC Sensor For HVAC System
