220V Central Air Conditioner Thermostat / Black Touch Screen Room Thermostat

220V Central Air Conditioner Thermostat / Black Touch Screen Room Thermostat

    • 220V Central Air Conditioner Thermostat / Black Touch Screen Room Thermostat
    • 220V Central Air Conditioner Thermostat / Black Touch Screen Room Thermostat
    • 220V Central Air Conditioner Thermostat / Black Touch Screen Room Thermostat
  • 220V Central Air Conditioner Thermostat / Black Touch Screen Room Thermostat

    Product Details:

    Place of Origin: Nanjing,China
    Brand Name: Saiko
    Certification: CE
    Model Number: SK304

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 pcs
    Price: Negotiation
    Packaging Details: 50PCS/CTN(CTN SIZE:510*210*360mm)
    Delivery Time: 3-15 workdays
    Payment Terms: T/T, Western Union
    Supply Ability: 20000PCS/MONTH
    Contact Now
    Detailed Product Description
    Color: Black Voltage: 220VAC±10%, 50/60HZ
    Power Self-consumption: <1.5W Temperature Accuracy: ±1℃
    Set-point Range: 5~35℃ Mode: Heating/cooling
    High Light:

    digital programmable room thermostat

    ,

    central air conditioner thermostat

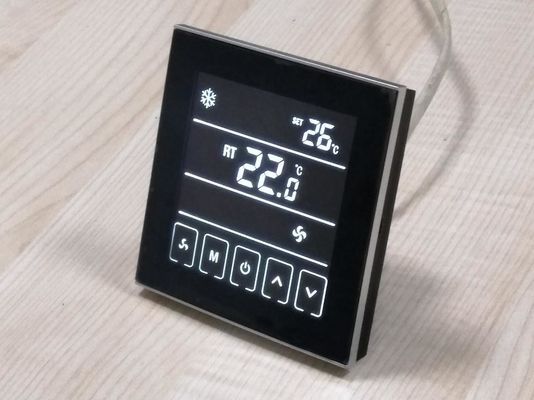

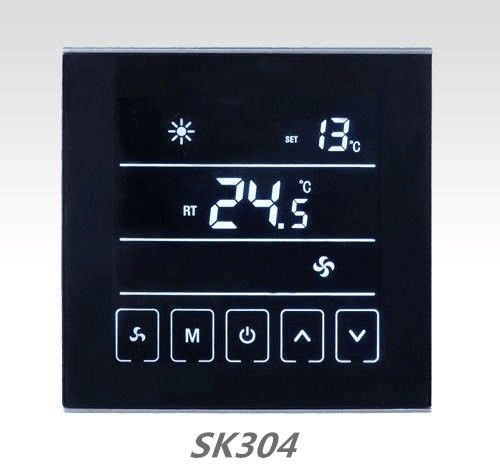

    Digital Room Thermostat With LCD Touch Screen



    The SK304 series thermostat are widely used to control the terminals of central air-conditioning system in the business, industrial and civil constructions, such as fan coil, motorized valve and air damper.



    • Technical Data



    Set TEMP range 5-35 ℃ Power supply 220VAC±10%,50/60Hz
    Accuracy ±1℃ Rated current Max resistive current 3A
    Sensor Type NTC sensor Power consumption <2W
    Ambient Condition -5-55 ℃ Operating Humidity 5~90%RH (no condensing)
    Color Black Protection Class IP20

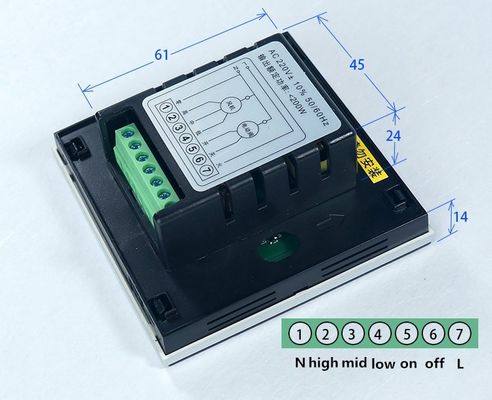

    Housing Material PC+ABS Flame Retardant plastics Dimension ( W × H × D ) 86*86*14mm
    Certificate CE & ISO9001 Hole pitch 60mm (standard)




    • To turn the thermostat on/off

    1. The power on and off of the thermostat can be realized through manual operation.

    The power on/off condition can be switched through press on/off button.

    2. The primary power up of the system is under the power off condition.



    • To adjust thermostat temperature

    1. Press △ or ▽ to adjust the temperature, the flashing default temperature is 20℃;

    2. Press △ to increase temperature by 1℃;

    3. Press ▽ to decrease temperature by 1℃;

    4. The system will exit automatically without any operation in 5 seconds.



    • Temperature calibration

    When the thermostat is in stand by state, press “220V Central Air Conditioner Thermostat / Black Touch Screen Room Thermostat” for 3 seconds, while display “XX” ℃ (RT symbol doesn’t show), press “up” or “down” key to adjust the temperature to the correct value, it will accept automatically in 5 seconds.



    • Heating/Cooling setting

    Press “M” key to select heating or cooling mode.



    • Fan speed setting

    With each press of the “fan speed key”, the thermostat will change the speed among low, medium, high and auto speed. In Auto” mode, the speed automatically change according to the difference between room temp. and set temp.



    • To set timer

    When the thermostat is turned on, press “220V Central Air Conditioner Thermostat / Black Touch Screen Room Thermostat” until the time start flashing, using the up or down key to set the desired time. It will accept automatically in 5 seconds. The thermostat is now set to be turned on/off at the desired time.
