Product Details:

Place of Origin: Nanjing, China
Brand Name: SAIKO
Certification: CE
Model Number: SK-SS

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: 85pcs/ctn
Delivery Time: 20 workdays
Supply Ability: 10000 Piece/Pieces per Month
Contact Now
Detailed Product Description

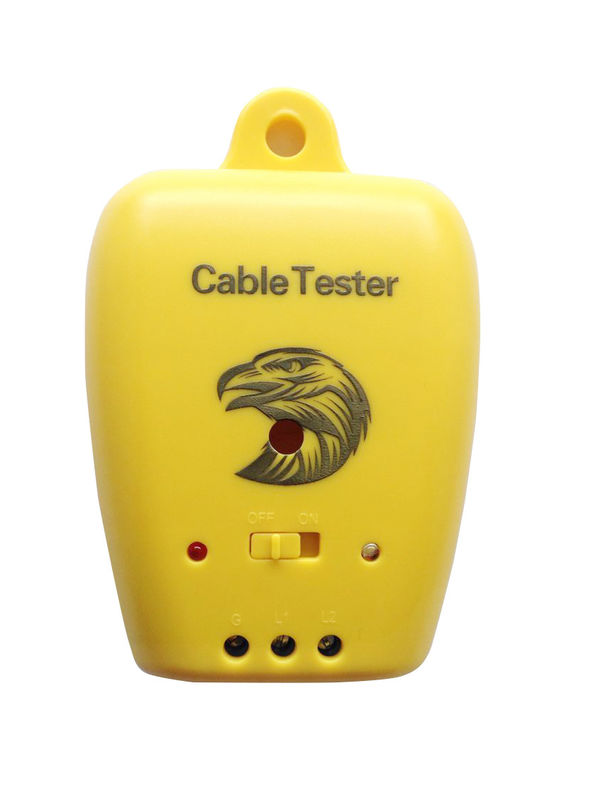

Heating Cable Monitor



Easy to install monitoring tracking project.

The heating elements are tough, but they could be damaged on the jobsite.

We recommend the screamer to monitor every process during installation.

The screamer will immediately warn you in the event of damage.

If the alarm sounds, stop working and check troubleshooting page in the installation manual.



PREPARATION
1. Open the battery compartment cover and insert two(2)AAA batteries.
Make sure the batteries are installed in correct polarity as shown in the
battery compartment. See figure 1.
2. Replace the battery compartment cover and switch the unit to "ON".
3. The alarm should sound and the red light should flash when
there are no connections to a mat or cable. If these things do not
occur, inspect the battery connection or replace the batteries.
4. During normal use, the green light indicates that the screamer is
monitoring the mat or cable for damage. Should the green light go
out, replace the batteries before continuing work.



ALARM INSTRUCTIONS

X” indicates alarm



Leads Short circuit Open circuit
L1, L2 N/A X
G, L1 X N/A
G, L2 X N/A
G & L1+L2 X N/A
