    Product Details:

    Place of Origin: Jiangsu
    Brand Name: Saiko
    Certification: CE
    Model Number: SK70.XX

    Payment & Shipping Terms:

    Minimum Order Quantity: 20PCS
    Price: Negotiation
    Packaging Details: 1pcs to a small box, 64pcs/ carton, Size of carton: 43cm*39cm*29cm
    Delivery Time: 5-8 days
    Payment Terms: Western Union, T/T
    Supply Ability: 20000PCS/Month
    Contact Now
    Detailed Product Description
    Voltage: 230VAC Type: Floor Heating Parts
    Current Load: 16A Protection Grade: IP20
    Housing Material: Self-extinguishing PC Power Consumption: 5W

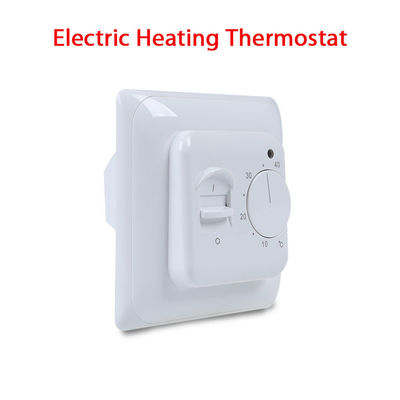

    Manual Underfloor Heating Thermostat with Floor Sensor and 3m Length Cable



    Introduction



    The thermostat acquires the room temperature with its built-in sensor or floor sensor.and the heating contact will close when the room temperature falls below the selected set point.



    Thermostat characteristic

    - Mounted on the surface of the wall indoors

    - Temperature control range +5/+40℃

    - Applied in the auto-control system of space heating

    - LED turned onwhile heating

    - Satisfying the requirements of safety, energy saving and comfort





    Parameters




    Voltage 220V/230V AC
    Output relay 16Amps
    Cable length 3m
    Setting range 5°C-40°C
    Ambient temperature -5°C-50°C
    Housing material self—extinguishing PC
    Floor sensor rubber-thermoplastic NTC sensor
    Switching differential  +/-0.5K
    Protective housing IP20







    Restriction of Control Knob Adjusting Range:

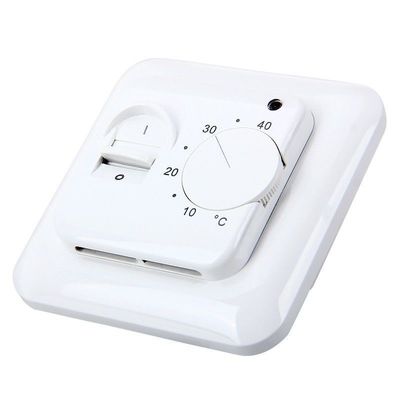

    Manual Underfloor Heating Thermostat with Floor Sensor and 3m Length Cable

    The lock mechanism under the controlknob can be used to restrict the adjusting temperature range. User can lock the adjusting range (e.g.20-25℃) as long as loosing the screw C (shown in Fig.2). The top adjusting ring can restrict themaximal temperature, and the under one can restrict the minimal temperature.



    Packaging & Delivery



    Packaging Details: box per pc, 100pcs for a carton

    Delivery Time: Thermostat sample in stock

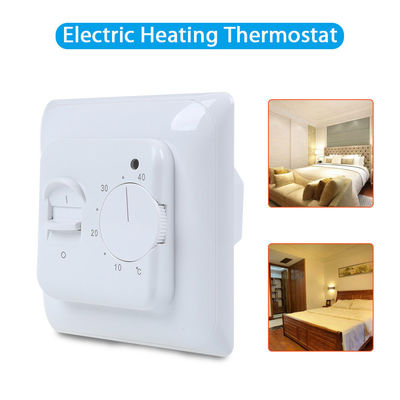

    Manual Underfloor Heating Thermostat with Floor Sensor and 3m Length Cable
    Circuit diagram

    Manual Underfloor Heating Thermostat with Floor Sensor and 3m Length Cable
