16A Digital Programmable Thermostat For Electric Heat / Underfloor Heating Digital Thermostat

16A Digital Programmable Thermostat For Electric Heat / Underfloor Heating Digital Thermostat

    • 16A Digital Programmable Thermostat For Electric Heat / Underfloor Heating Digital Thermostat
    • 16A Digital Programmable Thermostat For Electric Heat / Underfloor Heating Digital Thermostat
    • 16A Digital Programmable Thermostat For Electric Heat / Underfloor Heating Digital Thermostat
    • 16A Digital Programmable Thermostat For Electric Heat / Underfloor Heating Digital Thermostat
  • 16A Digital Programmable Thermostat For Electric Heat / Underfloor Heating Digital Thermostat

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: Saiko
    Certification: CE
    Model Number: SK51

    Payment & Shipping Terms:

    Minimum Order Quantity: 64PCS
    Price: Negotiation
    Packaging Details: 64PCS/CTN (CTN SIZE:435*395*290mm)
    Delivery Time: 3-5 workdays
    Payment Terms: T/T, Western Union
    Supply Ability: 3000PCS/WEEK
    Contact Now
    Detailed Product Description
    Type: HVAC Systems Voltage: AC230V
    Current Load: 16A Floor Heating Thermostat Setting Range: +5~+90℃ Floor Heating Thermostat

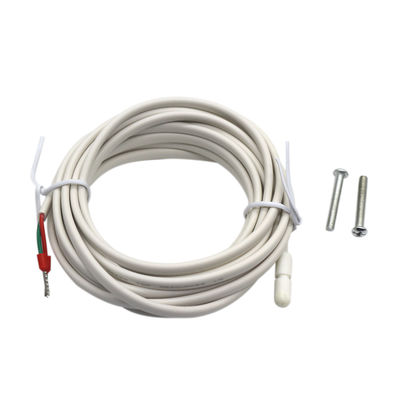

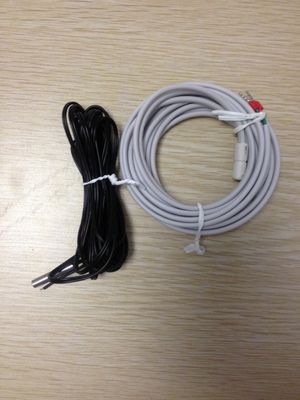

    Floor Sensor: Rubber-thermoplastic NTC Sensor Housing Material: Self-extinguishing PC

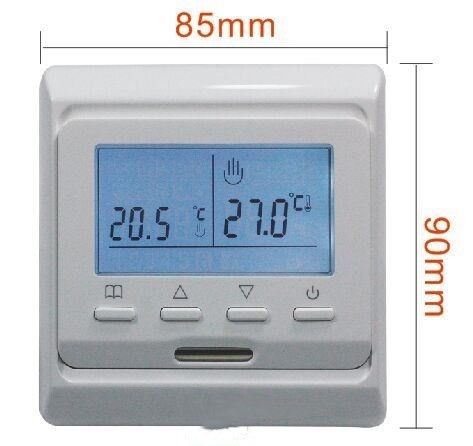

    16A E51.716 Weekly circulation digital Programming Thermostat



    Description:



    SK51 Weekly Programmable Underfloor Heating Thermostat is 7 day programmable ,possible to set 6 periods each day with different tempratures ,also you can select "manual mode " or "temporary control mode "according to your individual requirements .



    Technical data



    Power Supply AC200-240VAC 50/60HZ
    Accuracy ±0.5ºC
    Probe sensor NTC
    Power Consumption <0.3W
    Load current 3A(water heating),16A(electric heating)
    Temperature Adjustable Range 5°C~90°C( can adjust to 35°C~90°C)
    Limit Temperature Range 5°C~60°C( factory setting: 35°C)
    Output Switch relay
    Insulating condition Normal environment
    Running program Set per 1 week as a cycle
    Installation Wall mounted
    Application Water Floor Heating System
    Electric Floor Heating System
    Infrared Heater System
    Certificate CE,RoHS



    Selection Table

    Model Current Application
    E51.713 3A Built-in& floor sensor, floor limit sensor, weekly programming
    E51.723 3A Built-in& floor sensor, floor limit sensor, weekly programming. A potential-free output
    E51.716 16A Built-in& floor sensor, floor limit sensor, weekly programming
