Place of Origin: | Jiangsu |
Brand Name: | Saiko |
Certification: | CE |
Model Number: | SKC |
Minimum Order Quantity: | 50PCS |
---|---|
Price: | Negotiation |
Packaging Details: | one set in one white box, 20 sets in one carton. |
Delivery Time: | 15 days after received advance payment |
Payment Terms: | T/T, Western Union |
Supply Ability: | 20000 Set/Sets per Month |
Name: | Motorized Zone Valve | Connection: | BSPP |
---|---|---|---|
Power: | Electric Motor | Material: | Brass |
Media: | Water | Temperature Of Media: | Low Temperature |
High Light: | motorized control valve,motorised water valve |

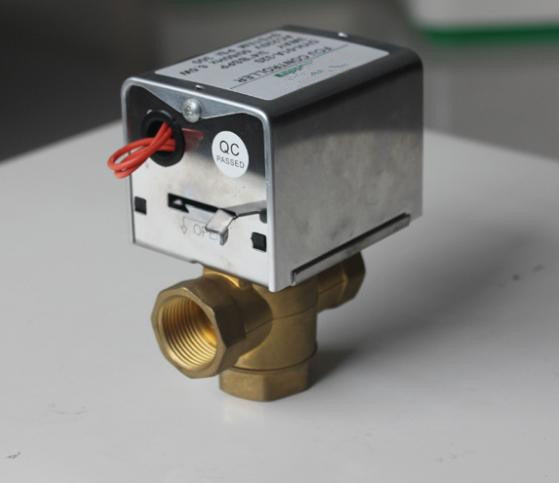

2-way and 3-way 3/4" Electric Valve Motorized Control Zone Valve
SKC series brass motorised valves are primarily designed to control the flow of water or steam in response tothe demand of a controller in zone and fan coil applications.The valve is driven by hysteresis synchronous motor with spring return. The valve is normal-closed. When thethermostat is working, it will provide an opening signal, and the motorized valve will be turned on to open. Thenthe chilled/hot water will enter into the coil and supply the cold/hot to the room. When the room temperature risesup to the set point, the thermostat will make the valve power off. At the same time the valve will be closed byreturn spring and the water to the coil will be shut off. The room temperature will be kept in the setting range all the time through the opening and closing of the valve.
SKC215 | 15mm (1/2”) |
2-way valve
|
2.2(2.5) | 0.18 MPa (25PSI) | 700 |
SKC220 | 20mm (3/4”) | 3.0(3.5) | 0.16 MPa (23PSI) | 850 | |
SKC225 | 25mm (1”) | 6.9(8.0) | 0.14 MPa (20PSI) | 1000 | |
SKC315 | 15mm (1/2”) |
3-way valve
|
2.6(3.0) | 0.18 MPa (25PSI) | 750 |
SKC320 | 20mm (3/4”) | 3.4(4.0) | 0.16 MPa (23PSI) | 900 | |
SKC325 | 25mm (1”) | 6.5(7.5) | 0.14 MPa (20PSI) | 1050 |
Medium |
Cooling or heating water |
|
Rated power supply | 220V, 120V or 24V | |
Operating fluid temperature range |
0 ~ 94 oC (non-freezing |
|
Operating temperature range |
0 ~ 40 oC | |
Operating time |
Power Stroke 10 ~ 15s Spring Return close 4 ~ 5s |
|
Maximum pressure |
300 psi / 2.0 Mpa | |
Action |
Spring Return; Normally Close; |
|
Material |
Actuator |
Stainless steel base plate, aluminum cover |
Valve body | Forged Brass |
Pipe Connecting Instruction
