| Place of Origin: | Jiangsu |
| Brand Name: | Saiko |
| Certification: | CE |
| Model Number: | SK308 |
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 50PCS/CTN(CTN SIZE:510*210*320mm) |
| Delivery Time: | 10 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000PCS/WEEK |
| Type: | HVAC Systems | Color: | White |
|---|---|---|---|
| Power Supply: | 100~240VAC 50/60Hz | Mode: | Heat/Cool/Vent |
| Fan: | 3-speed Fan Control | Logo: | OEM |
| High Light: | central air conditioner thermostat,digital wall thermostat |
||

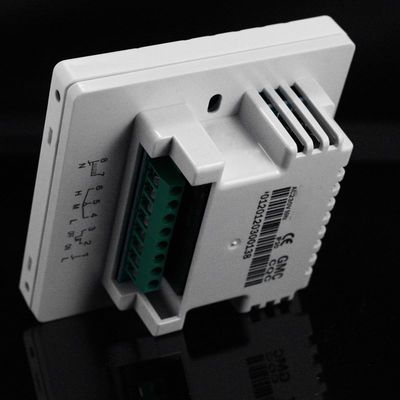

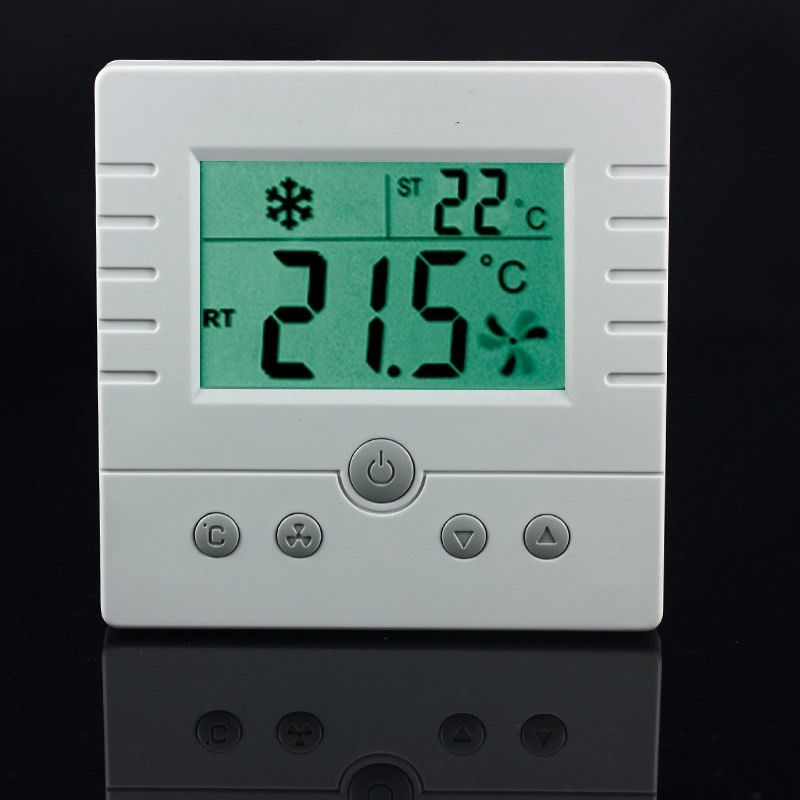

Digital Fan Coil Thermostat Temperature Controller
SK308 is a high-end smart thermostat that with large graphic LCD screen and capacitive touch keys.
This product can control the fan coil unit, air conditioner, the fan of heating device, air valve, air valve,
heater and other equipments.
Feature
• Large size LCD display for better read
• Microprocessor based
• Reliable separate power unit
• Clear back light illumination
• Time display and week day display
• Adjustable High/medium/low/Auto fan speed
• Heat / Cool selection
• Customizing available
• 2 years warranty
Specification
|
Power supply
|
100 ～ 240VAC 50/60HZ
Standby consumption: <0.5W Maximum consumption: <2W |
|
Outputs
|
Up to 5 relays
Load current: rated current 1A, surge current 3A |
|
User Interface
|
5 backlit capacitive touch keys
Backlit 128*64 B/W graphic LCD |
|
Standby time of battery
|
8 hours
|
|
Temperature
|
Setting temperature: 5-35℃
|
|
Environmental temperature: 0-50℃
|
|
|
Precision: ±1℃
|
|
|
Probe: NTC
|
|
|
Installation
|
CCC(86mm*86mm)
CE(86mm*86mm) |
|

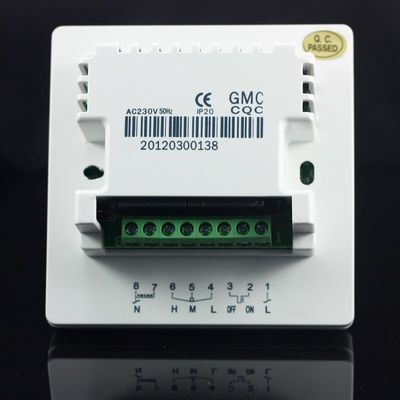

Wiring
|
2 power-supply wirings
5 ways output wirings Cross-sectional area of conductor: 1 * 1.0 mm² ~ 1 * 2.5 m² |
