| Place of Origin: | Jiangsu |
| Brand Name: | Saiko |
| Certification: | CE |
| Model Number: | SK81 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1pc/inner box, 50pcs/carton |
| Delivery Time: | 3-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 8000pcs/week |
| Type: | Floor Heating Thermostat | Voltage: | 220V/230V |
|---|---|---|---|
| Installation: | Wall Mounted Installation | Color: | Black |
| Housing Material: | Anti-flammable PC | Protective Housing: | IP20 |
| High Light: | touch screen room thermostat,touch screen heating thermostat |
||

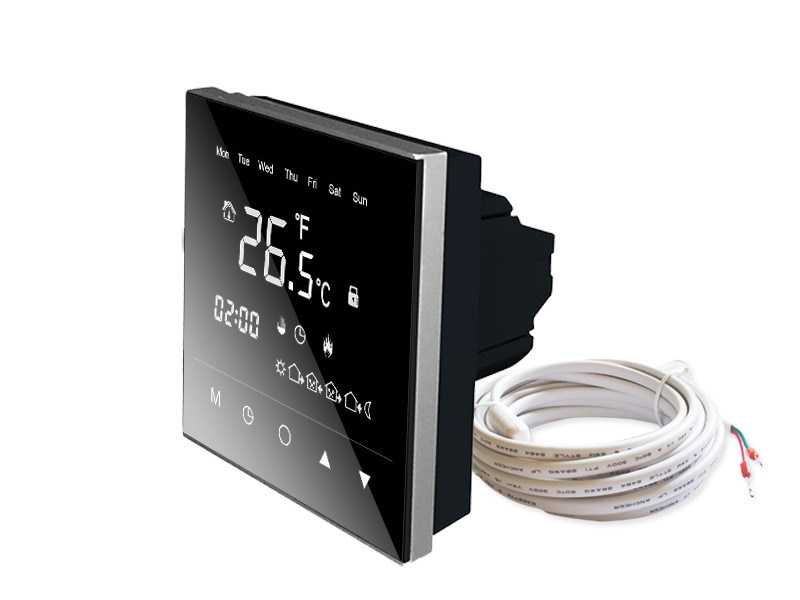

Floor Heating System Black Large Touch Screen Thermostat OEM/ODM
The SK81 series Touch Screen Thermostat has been developed to control electric underfloor . These units are designed for use in commercial, industrial, civil and domestic properties.
Now you don't need to choose between saving money or staying comfortable. The thermostat can help you save up energy costs every year when you use a pre-set heating program schedule. When you use our intuitive mobile app, you can adjust your room thermostat schedule around your life, so you're not needlessly heating an empty home.
Application
For the control of warm-water(floor) heating systems and direct electric heatings systems used in Commercial buildings, Residential buildings, Light industrial buildings.
Display
| Large, touchscreen display; |
| European standard installation box; |
| White lighted display for easier low-light viewing; |
| Comfort & Convenience; |
| Intuitive menu-driven set-up, programming and operation; |
| Permanent program retention during power loss; |
| Setpoint temperature limited range capable; |
| Enhanced touchscreen security prevents tampering; |
| Can switch upto 16 amps (230v); |
| Temperature display resolution: 0.5 C; |
Specifications
| Power supply: | 230VAC (120VAC optional) |
| Inputs: | 2 x NTC10K temperature sensors |
| Output: | 1 x switch relay(R1),max 3500watts |
| Operating RH: | 0~95% (non condensing) |
| Dimensions: | 121mm x 80mm x18mm |
| Backlight life: | 5,000 hours |
A / AF/ F models all in one
| Combination of 3 models; |
| A - Air only, with built-in sensor; |
| F - Floor only,controls floor temperature; |
| AF - Controls air temperature with ability to limit the floor temperature; |
| Each thermostat is equipped with built-in sensor and a 3 meter floor sensor; |
Company information
SAIKO is a thermostat ＆ valve design and manufacturing factory located in Nanjing City, which is very famous as the ancient capital of six dynasties in Jiangsu Province, China.
We devote ourselves to R&D, production, sale and marketing of our energy saving products. Our core business is central air-conditioning &radiant floor heating, Z-wave Smart Home Products, Central vacuums and ventilation products.We provide control solutions with low cost,product customizing and continuous improvement.
We acquired the “CE certification” for all products. By carefully choosing qualified suppliers and making use of a convenient logistic network, we can ensure to carry out all orders on time combined with highest possible amount of accuracy,including our abroad market.
Our goal is to provide our clients with exceptional service and listen to our client need and provide them with the satisfied solution and services.
