| Place of Origin: | Jiangsu |
| Brand Name: | Saiko |
| Certification: | CE,Rohs |
| Model Number: | SK308 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 50PCS/CTN(CTN SIZE:510*210*320mm) |
| Delivery Time: | 3-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20000pcs/month |
| Type: | HVAC Systems | Power Supply: | 100~240VAC 50/60Hz |
|---|---|---|---|
| Function: | Heating / Cooling Room Fcu Thermostat | Backlight: | Blue |
| Color: | White | Size: | 86mm X 86mm X13mm |
| High Light: | heating and cooling thermostat,fan coil room thermostat |
||

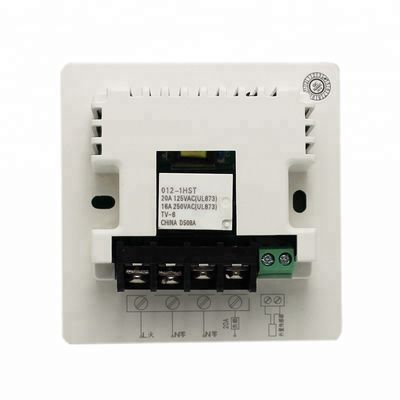

Fan Coil Thermostat for Central Conditioning with Anti-Flammale PC
SK308 is a high-end smart thermostat that with large graphic LCD screen and capacitive touch keys.
This product can control the fan coil unit, air conditioner, the fan of heating device, air valve, air valve,heater and other equipments.
Specification
| Power supply | 100 ~ 240VAC 50/60HZ Standby consumption: <0.5W Maximum consumption: <2W |
| Outputs | Up to 5 relays Load current: rated current 1A, surge current 3A |
| User Interface | 5 backlit capacitive touch keys Backlit 128*64 B/W graphic LCD |
| Standby time of battery | 8 hours |
| Temperature | Setting temperature: 5-35ºC Environmental temperature: 0-50ºC Precision: ±1ºC Probe: NTC |
| Installation | CCC(86mm*86mm) CE(86mm*86mm) |
| Wiring | 2 power-supply wirings 5 ways output wirings Cross-sectional area of conductor: 1 * 1.0 mm² ~ 1 * 2.5 m² |
Feature
| • Large size LCD display for better read |
| • Microprocessor based |
| • Reliable separate power unit |
| • Clear back light illumination |
| • Time display and week day display |
| • Adjustable High/medium/low/Auto fan speed |
| • Heat / Cool selection |
| • Customizing available |
