| Place of Origin: | Jiangsu |
| Brand Name: | Saiko |
| Certification: | CE |
| Model Number: | SK31 |
| Minimum Order Quantity: | 64PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | inner box: neutral packing with label; 64pcs/ctn |
| Delivery Time: | 10 workdays |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 10000PCS/WEEK |
| Type: | Floor Heating | Voltage: | 230V |
|---|---|---|---|
| Switching Differential: | 0.5℃~10℃ (factory Setting: ±1℃) | Sensor: | NTC Sensor |
| Setting Range: | 5-95℃ | Switch Differential: | 0.5-10 Adjustable |
| High Light: | electric underfloor heating thermostat,underfloor heating room thermostat |
||
Electric Infrared Heated Floor Thermostat , Underfloor Heating Programmable Thermostat
Heated Floor thermostat with LCD screen, which has manual mode and energy saving mode. The thermostat is recommended for the control of electric heating device or on/off valve actuator in hydronic underfloor heating.
Technical data
Voltage: 220V-240V
Power Consumption: 2W
Setting Range: 5-35℃(Can adjust to 5-90℃)
External limitation: 5...60℃(Factory setting: 35℃)
Sensor:NTC internal/external sensor
Switch differential: 0.5-10 ℃adjustable (Factory setting: ±1℃)
Ambient temperature:-5-50℃
Protection housing: IP20
Housing material: Anti-flammable PC
Selection Table
|
MODEL
|
CURRENT | APPLICATION |
| E51.716 | 16A | Built-in & floor sensor, floor limit sensor weekly programming |
Sensor Failure
E0:Built-in sensor short-circuited or disconnected
E1:Exernal sensor short-circuited or disconnected.
When shows E0/E1 error, thermostat must be checked till the error is eliminated.
Package

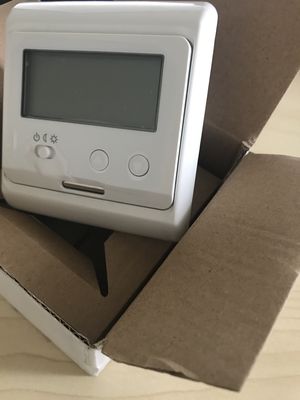

Individual white box and outer carton, 64pcs in one carton.
Wiring Diagram
