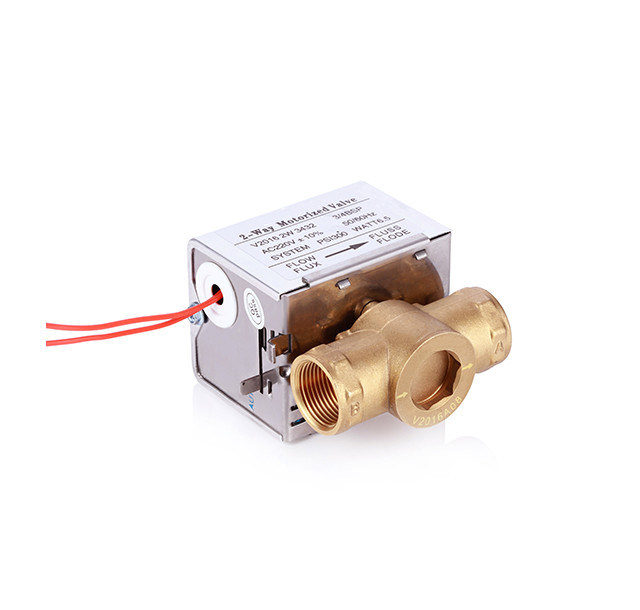

General Coil Motorized Valve / Forged Actuator Valve For Fan Coil Unit

General Coil Motorized Valve / Forged Actuator Valve For Fan Coil Unit

    • General Coil Motorized Valve / Forged Actuator Valve For Fan Coil Unit
    • General Coil Motorized Valve / Forged Actuator Valve For Fan Coil Unit
  • General Coil Motorized Valve / Forged Actuator Valve For Fan Coil Unit

    Product Details:

    Place of Origin: China
    Brand Name: Saiko
    Certification: CE
    Model Number: SKC320

    Payment & Shipping Terms:

    Minimum Order Quantity: 20PCS
    Price: Negotiation
    Payment Terms: T/T, Western Union
    Contact Now
    Detailed Product Description
    Power: Solenoid Media: Water
    Material: Forged Pressure: Medium Pressure
    Media Temperature: Normal Temperature Application: General
    High Light:

    heating motorised valve

    ,

    motorised water valve

    2 way/3 way Fan Coil Unit Motorized Zone Valve



    The SKC series brass motorized valves are primarily designed to control the flow of water or steam in response to the demand of a controller in zone and fan coil applications
    The electric on/off actuator provides a two positions control
    It has spring return function and manual override Tab
    Valve's actuator can be installed after valve body has been installed onto pipe
    The valves are resistant to high moisture conditions, and feature a removable head
    AE Series valves are available for low pressure steam applications. CE approval

    Specifications
    Operating Voltage:220-240VAC50/60Hz
    Rated Power:5W
    Motor: magnetic hysteresis synchronous motor 5RPM
    Nominal Pressure:1.6Mpa
    Close-off Pressure:0.3Mpa
    Applied Media: chilled water, hot water, low-pressure steam
    Stroke Range:3mm-5mm
    Full stroke time "on":approx.10s
    Full stroke time "off":approx.5s
    Suitable Media Temperature:1oC-95oC
    Control Signal:On/off,2 position, spring return







    Models

    No. Model Size Body Structure Kv/Cv Value Closing Pressure
    1 SKC15 1/2''(2-way)

    Removable actuator

    (actuator can be easily dismantled from valve body)

    2.2/2.5 0.20MPa
    2 SKC20 3/4''(2-way) 3.0/3.5 0.18MPa
    3 SKC25 1'' (2-way) 6.9/8.0 0.15MPa
    4 SKC315 1/2''(3-way) 2.2/2.5 0.20MPa
    5 SKC320 3/4''(3-way) 3.0/3.5 0.18MPa
    6 SKC325 1'' (3-way) 6.9/8.0 0.15MPa

    -- 24Vac models are available;

    -- Customizing available;

    -- Out thread models available.
