Floor Heating Touch Screen Programmable Electric Thermostat with Floor Sensor

Floor Heating Touch Screen Programmable Electric Thermostat with Floor Sensor

    • Floor Heating Touch Screen Programmable Electric Thermostat with Floor Sensor
    • Floor Heating Touch Screen Programmable Electric Thermostat with Floor Sensor
    • Floor Heating Touch Screen Programmable Electric Thermostat with Floor Sensor
  • Floor Heating Touch Screen Programmable Electric Thermostat with Floor Sensor

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: Saiko
    Certification: CE
    Model Number: SK91

    Payment & Shipping Terms:

    Minimum Order Quantity: 64PCS
    Price: Negotiation
    Packaging Details: 64PCS/CTN (CTN SIZE:435*395*290mm)
    Delivery Time: 3-5 workdays
    Payment Terms: T/T, Western Union
    Supply Ability: 3000PCS/WEEK
    Contact Now
    Detailed Product Description
    Type: HVAC Systems Voltage: AC230V, 50Hz
    Current Load: 16A Setting Range: +5~+90℃

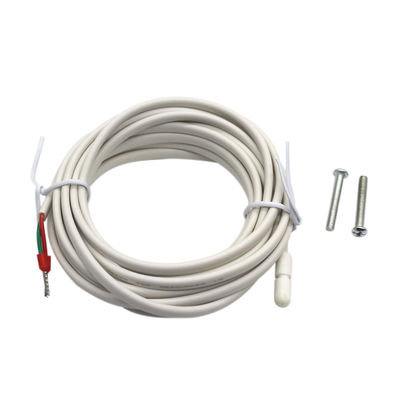

    Floor Sensor: NTC Sensor Housing Material: Self-extinguishing PC

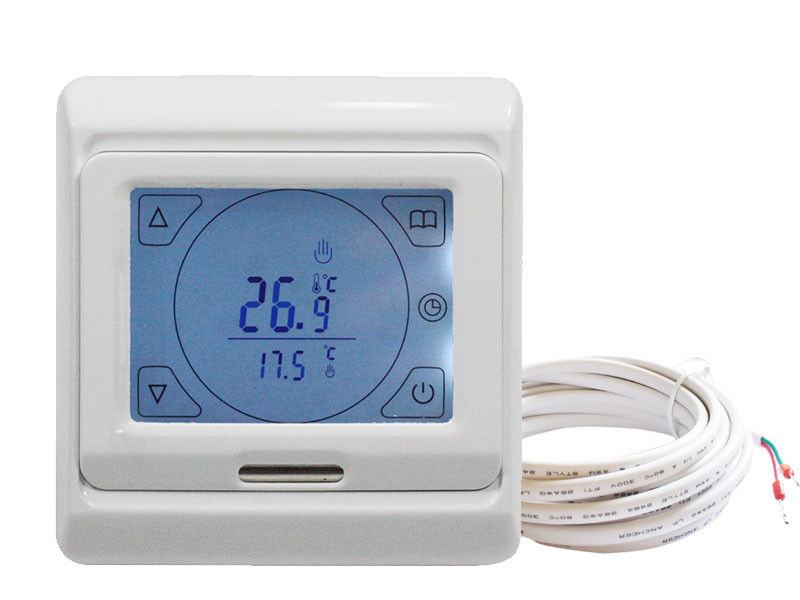

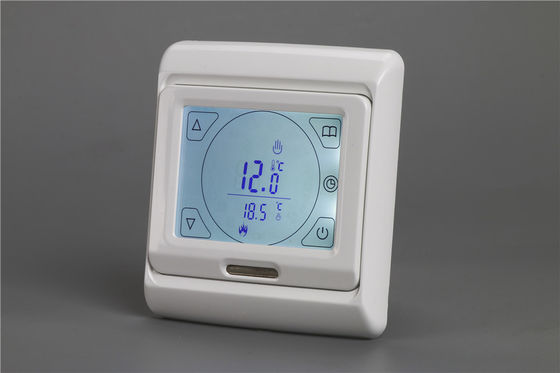

    Floor Heating Touch Screen Programmable Electric Thermostat with Floor Sensor


    Touch Screen Period Programming Thermostat Weekly circulation, it is possible to set 6 periods called events each day with corresponding pre-set temperatures, also you can select "period control mode" or "manual mode" according to your individual requirements. The thermostat is recommended for the control of electric heating devices or on/off valve actuator used in water-based heating systems.

    Technical data



    Power Supply AC200-240VAC 50/60HZ
    Accuracy ±0.5ºC
    Probe sensor NTC
    Power Consumption <0.3W
    Load current 3A(water heating),16A(electric heating)
    Temperature Adjustable Range 5°C~90°C( can adjust to 35°C~90°C)
    Limit Temperature Range 5°C~60°C( factory setting: 35°C)
    Output Switch relay
    Insulating condition Normal environment
    Running program Set per 1 week as a cycle
    Installation Wall mounted
    Application Water Floor Heating System
    Electric Floor Heating System
    Infrared Heater System
    Certificate CE,RoHS


    Advanced setting (qualified person preferred)


    You can press "M" and"Time"and hold for 5 seconds at the same time to enter the mode of advanced setting when the thermostat is turned off. The following seven function can be chosen by pressing "M".


    Symbol Setting Up or Down
    1 ADJ Temperature calibration Adjust measured temperature
    2 SEN Sensor mode

    IN: built-in sensor
    OUT: floor sensor
    ALL: both sensors
    (floor sensor is the limit sensor)

    3 LIT Limitation temperature

    Adjust limitation value,
    Limitation range:5℃~50℃

    4 DIF Switching differential Adjust switching differential
    5 LTP Antifreeze function Turn on/off Anti-frozen function
    6 PRG Set vacation mode

    2: 5/2 day mode
    1: 6/1 day mode
    0: 7 day mode

    7 RLE Potential-free output

    00: in same way
    01: in different way

    8 DLY Potential-free output delay Change the delay time
    9 HIT Max. Temperature Max. Limitation temperature set point (99℃)
    10 AFAC Reset to factory settings Programming parameters will be reset to factory settings when symbol "Floor Heating Touch Screen Programmable Electric Thermostat with Floor Sensor" appears

    Floor Heating Touch Screen Programmable Electric Thermostat with Floor Sensor
    Floor Heating Touch Screen Programmable Electric Thermostat with Floor Sensor

    Writing Diagram
    Floor Heating Touch Screen Programmable Electric Thermostat with Floor Sensor
    Sensor failure
    Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated.

    Packaging&Delivery



    Packaging Details UNIT WEIGHT: 0.35KG/PC;
    64 PCS/CTN;
    GROSS WEIGHT: 22.4KG;
    PAPER BOX PACKING;
    BOX DIMENSION: 42*40*29CM
    Delivery Detail Shipped in 15 days after payment
