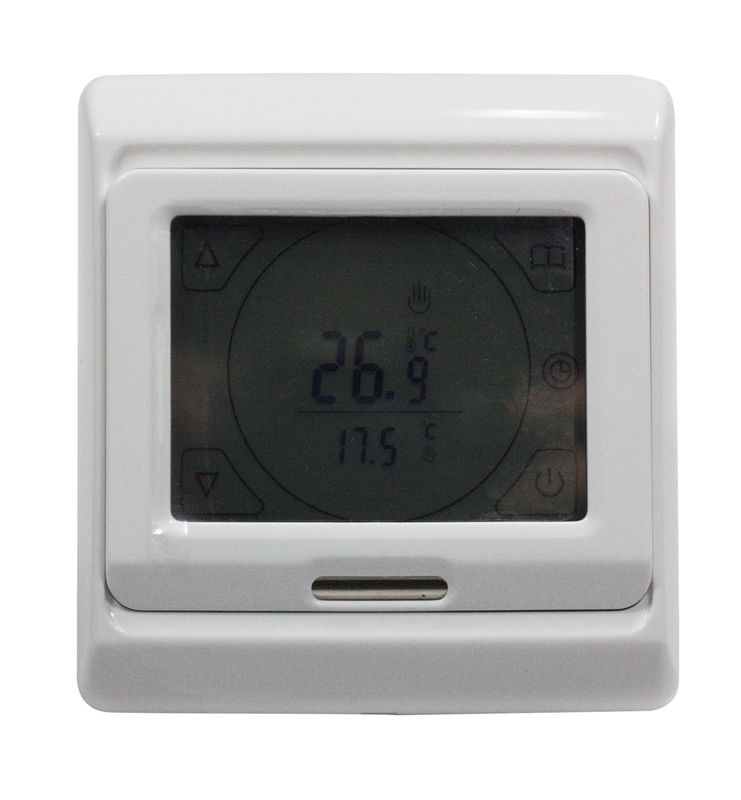

Weekly Circulation Digital Programming Touch Thermostat

Weekly Circulation Digital Programming Touch Thermostat

    • Weekly Circulation Digital Programming Touch Thermostat
    • Weekly Circulation Digital Programming Touch Thermostat
    • Weekly Circulation Digital Programming Touch Thermostat
    • Weekly Circulation Digital Programming Touch Thermostat
  • Weekly Circulation Digital Programming Touch Thermostat

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: Saiko
    Certification: CE
    Model Number: SK90

    Payment & Shipping Terms:

    Minimum Order Quantity: 64PCS
    Price: Negotiation
    Packaging Details: Inner box: neutral packing with label, Packing quota (pcs/ctn): 64 pcs/ctn
    Delivery Time: 10-15 workdays
    Payment Terms: T/T, L/C
    Supply Ability: 10000PCS/WEEK
    Contact Now
    Detailed Product Description
    Type: Floor Heating Systems, Digital Touch Screen Underfloor Heating Thermostat Voltage: 220V/230V
    Power Consumption: 2W Setting Range: 5-90℃ (can Adjust To 35-90 ℃)
    External Limitation: 5-60℃(Factory Setting: 35℃) Housing Material: Anti-flammable PC





    Weekly Circulation Digital Programming Touch Thermostat





    Introduction

    Weekly Circulation Digital Programming Touch Thermostat, which has 6-event everyday. Manual mode and programme mode could be selected. The thermostat is recommended for control of electric heating devices or on/off valve actuator used in hydronic floor heating.



    Application

    For the control of warm-water(floor) heating systems and direct electric heatings systems used in Commercial buildings, Residential buildings, Light industrial buildings...



    Technical data

    Voltage: 220V/230V

    Power Consumption: 2W

    Setting Range: 5-90℃(Can adjust to 35-90℃)

    External limitation: 5...60℃(Factory setting: 35℃)

    Switch differential: 0.5-10℃ adjustable(Factory setting: ± 1 ℃)

    Ambient temperature: -5-50℃

    Protection class: IP20

    Housing material: Anti-flammable PC





    Selection Table

    Model Number Current Application
    E91.713 3A Built-in&floor sensor, floor limit sensor, weekly programming
    E91.723 3A Built-in&floor sensor, floor limit sensor, weekly programming. A potential-free output
    E91.716 16A Built-in&floor sensor, floor limit sensor, weekly programming

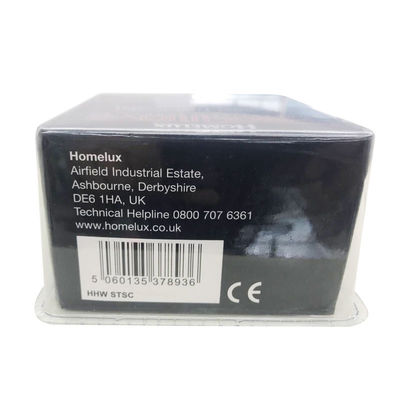

    Package



    Neutral carton packaging.Each unit packed in retail box.
    Carton box material: K=K
    350g/pcs, 64pcs/carton.
    Inner tray of retail box: 85mm*96mm*35mm
    Retail box size: 95mm*100mm*65mm
    Carton size:430mm*390mm*290mm



    Dimensions:mm



    Weekly Circulation Digital Programming Touch Thermostat











    Advanced programming



    Weekly Circulation Digital Programming Touch Thermostat
