| Place of Origin: | Jiangsu |
| Brand Name: | Saiko |
| Certification: | CE |
| Model Number: | SK91 |
| Minimum Order Quantity: | 64PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 64PCS/CTN (CTN SIZE:435*395*290mm) |
| Delivery Time: | 3-5 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000PCS/WEEK |
| Type: | Floor Heating | Voltage: | AC230V |
|---|---|---|---|
| Current Load: | 16A | Setting Range: | +5~+90℃ |
| Floor Sensor: | NTC Sensor | Housing Material: | Self-extinguishing PC |
| Highlight: | digital touchscreen thermostat,touch screen heating thermostat |
||

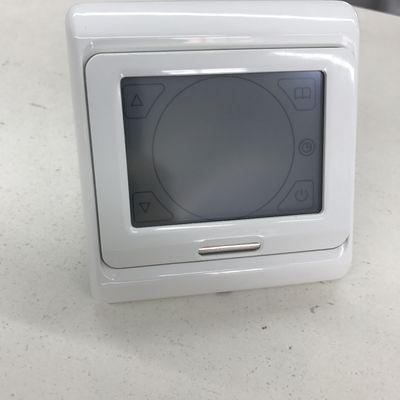

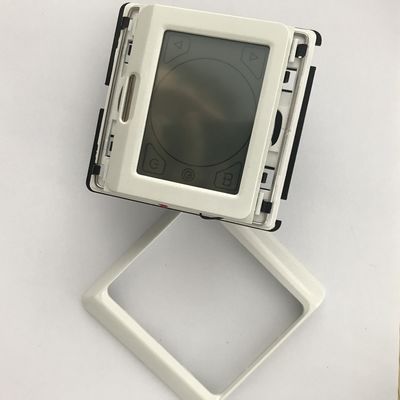

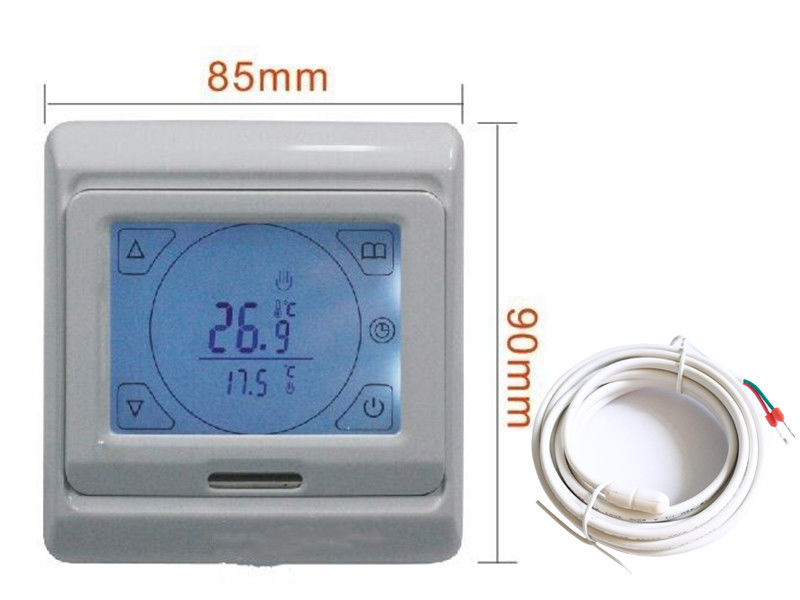

LCD touch screen weekly programmable electric floor heating thermostats
Touch Screen Period Programming Thermostat Weekly circulation, it is possible to set 6 periods called events each day with corresponding pre-set temperatures, also you can select "period control mode" or "manual mode" according to your individual requirements. The thermostat is recommended for the control of electric heating devices or on/off valve actuator used in water-based heating systems.
Technical data
| Power Supply | AC200-240VAC 50/60HZ |
| Accuracy | ±0.5ºC |
| Probe sensor | NTC |
| Power Consumption | <0.3W |
| Load current | 3A(water heating),16A(electric heating) |
| Temperature Adjustable Range | 5°C~90°C( can adjust to 35°C~90°C) |
| Limit Temperature Range | 5°C~60°C( factory setting: 35°C) |
| Output | Switch relay |
| Insulating condition | Normal environment |
| Running program | Set per 1 week as a cycle |
| Installation | Wall mounted |
| Application | Water Floor Heating System |
| Electric Floor Heating System | |
| Infrared Heater System | |
| Certificate | CE,RoHS |
Advanced setting (qualified person preferred)
You can press "M" and"Time"and hold for 5 seconds at the same time to enter the mode of advanced setting when the thermostat is turned off. The following seven function can be chosen by pressing "M".
| Symbol | Setting | Up or Down | |
| 1 | ADJ | Temperature calibration | Adjust measured temperature |
| 2 | SEN | Sensor mode |
IN: built-in sensor |
| 3 | LIT | Limitation temperature |
Adjust limitation value, |
| 4 | DIF | Switching differential | Adjust switching differential |
| 5 | LTP | Antifreeze function | Turn on/off Anti-frozen function |
| 6 | PRG | Set vacation mode |
2: 5/2 day mode |
| 7 | RLE | Potential-free output |
00: in same way |
| 8 | DLY | Potential-free output delay | Change the delay time |
| 9 | HIT | Max. Temperature | Max. Limitation temperature set point (99℃) |
| 10 | AFAC | Reset to factory settings | Programming parameters will be reset to factory settings when symbol " " appears |
Sensor failure
Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated.
