| Place of Origin: | Jiangsu |
| Brand Name: | Saiko |
| Certification: | CE,RoHs |
| Model Number: | SK50 |
| Minimum Order Quantity: | 64 pcs |
|---|---|
| Price: | FOB negotiable |
| Packaging Details: | 64 pcs in one carton |
| Delivery Time: | 10 workdays |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 30000pcs/month |
| Voltage: | 220V/230V | Power Consumption: | 2W |
|---|---|---|---|
| Protective Housing: | IP20 | Housing Material: | Anti-flammable PC |
| Setting Range: | 5℃~60℃ | ||
| High Light: | electric underfloor heating thermostat,underfloor heating programmable thermostat |
||

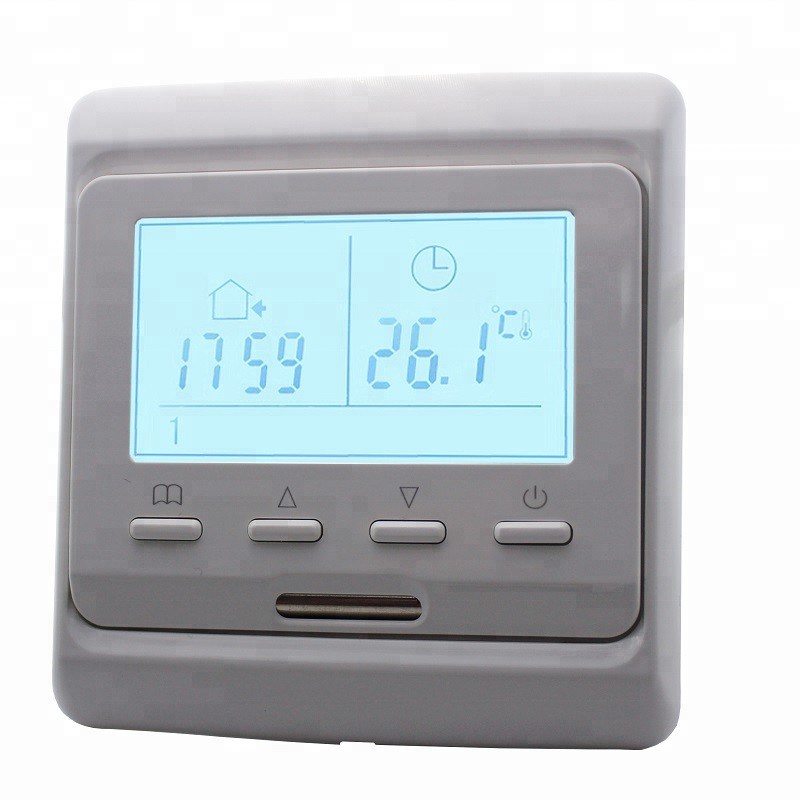

Introduction
The SK90 is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat.
The thermostat acquires the actual temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.
Application
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings...
Parameters
| Accuracy | ±0.5℃ |
| Probe sensor | NTC |
| Load current | 3A |
| Output | Switch relay |
| Application | Water/Floor heating |
Features
Touch-screen operating interface
7-day programmable function for energy-saving operation
On/off control output for heating device
Symbol indicator when heating is on
Temperature limitation function for protecting the floor
"Key-lock" function for protecting the setted parameters (especially suitable for Public Places)
Current room temperature displaying when the thermostat is switched-off
Dimension:mm
Circuit diagram
Advanced setting
