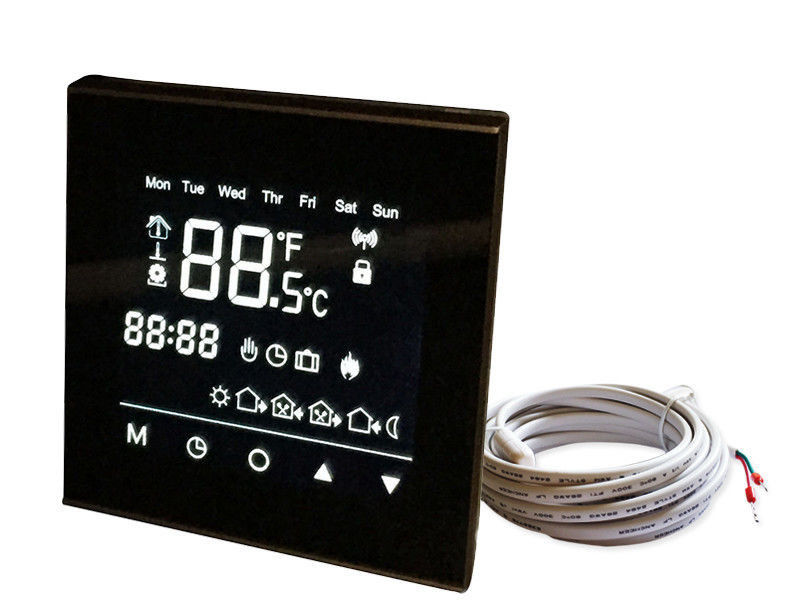

LCD Digital Programmable Room Thermostat NTC Sensor For Floor Heating System

LCD Digital Programmable Room Thermostat NTC Sensor For Floor Heating System

    • LCD Digital Programmable Room Thermostat NTC Sensor For Floor Heating System
    • LCD Digital Programmable Room Thermostat NTC Sensor For Floor Heating System
  • LCD Digital Programmable Room Thermostat NTC Sensor For Floor Heating System

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: Saiko
    Certification: CE
    Model Number: SK81

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: 64PCS/CTN (CTN SIZE:435*395*290mm)
    Delivery Time: 3-15 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 8000pcs/week
    Contact Now
    Detailed Product Description
    Type: Floor Heating System Color: Black
    Protective Housing: IP20 Setting Range: 5~35℃(Can Adjust To 5-60℃)
    External Limitation: 5~60℃(Factory Setting:35℃) Warrenty: 2 Years
    High Light:

    electric underfloor heating thermostat

    ,

    underfloor heating room thermostat

    Black Electric Large LCD Touch Screen Thermostat With Anti-flammable PC



    The SK81 series Touch Screen Thermostat has been developed to control electric underfloor . These units are designed for use in commercial, industrial, civil and domestic properties.
    Now you don't need to choose between saving money or staying comfortable. The thermostat can help you save up energy costs every year when you use a pre-set heating program schedule. When you use our intuitive mobile app, you can adjust your room thermostat schedule around your life, so you're not needlessly heating an empty home.



    Display



    • Large, touchscreen display;
    • European standard installation box;
    • White lighted display for easier low-light viewing;
    • Larger, easy-to-read character size;
    • Clean, uncluttered touchscreen display provides
    • Easier navigation.
    • Comfort & Convenience
    • Intuitive menu-driven set-up, programming and operation,
    • Permanent program retention during power loss;
    • Setpoint temperature limited range capable;
    • Enhanced touchscreen security prevents tampering.
    • Can switch upto 16 amps (230v)
    • Temperature display resolution: 0.5 C;


    Programming



    Choice of 7 day, 5/2 day programmable
    non-programmable (installer selectable);
    6 time and 4 temperature settings every day
    pre-programmed or personalized schedule
    Energy saving up to 33%



    Specifications

    Power supply 230VAC (120VAC optional)
    Inputs 2 x NTC10K temperature sensors
    Output 1 x switch relay(R1),max 3500watts
    Ambient temperature 0 °C [+32 °F] ~ +45 °C [+113 °F]
    Operating RH 0~95% (non condensing)
    Dimensions 86mm x 86mm x14mm
    Backlight life 5,000 hours

    LCD Digital Programmable Room Thermostat NTC Sensor For Floor Heating System

    LCD Digital Programmable Room Thermostat NTC Sensor For Floor Heating System




    LCD Digital Programmable Room Thermostat NTC Sensor For Floor Heating System

    FAQ

    Q1. Do you have any MOQ limit for room thermostat?

    A: 50pcs. 10pcs for sample checking is available



    Q2. How to proceed an order for heating thermostat?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.



    Q3. Do you offer guarantee for the products?
    A: Yes, we offer 2years warranty to our products.


    Q5.Can you do OEM and ODM for us?
    A: Yes. We are professional in provide OEM and ODM service



    Company profile

    SAIKO is a thermostat & valve design and manufacturing factory located in Nanjing City, which is very famous as the ancient capital of six dynasties in Jiangsu Province, China.



    We have advanced equipments, high technology and an excellent quality inspection system that strictly performs under the quality control of ISO9001. Our main products:Heating,Ventilation and Air Conditioning controls.Floor heating thermostat,Air conditioning thermostat and valves. Our mainly markets for America, Europe, The Middle East and Asia neighboring countries.



    The company has always attached importance to technical innovation and quality management, focus on the introduction of the outstanding talented person and the advanced equipment, now our products of high quality and because of its superior performance. We sincerely hope to establish business relations with customers from all over the world.
