|Place of Origin:||Jiangsu|
|Minimum Order Quantity:||64 pcs|
|Packaging Details:||64 pcs in one carton|
|Delivery Time:||10 workdays|
|Payment Terms:||Western Union, T/T，Paypal|
|Product Name:||Temperature Controller||Power Consumption:||5W|
|Housing Material:||Self-extinguishing PC||Floor Sensor:||Internal Sensor|
electric underfloor heating thermostat,
underfloor heating room thermostat

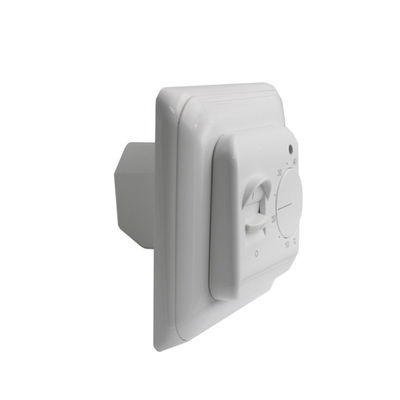

Electric room Floor Heating Thermostat for Commercial buildings is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat.The thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected set-point.
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings
1. We accept payment that aliexpress can accept, We apologize that we cannot accept other payment methods, such as cheque or postal orders .
2.All major credit cards are accepted,and we received it in 24 hours
3.Payment must be received within 10 business days of auction closing
Mounting of floor sensor:
Floor sensor should be placed in installation pipe which is embed-ded in floor, the pipe is thickened in the end and placed as high as possible in the concrete layer. Sensor cable may be extended up to 50 m with separate cable f or power current. Two conductors in a multi-conducting cable, which e.g. is used for supply of heating cable, may not be used. Voltage signals, which may disturb the function of the thermostat, may occur. If the cable is used with screen,the screen may not be connected to the ground, but must be
connected to terminal 7, the best installation is attained with a separate cable for the sensor, which is then mounted in a separate conduit.
Temperature and Value of floor sensor:
1 x Heating thermostat
1 x 2.9m sensor cable
2 x Mounting screws
1 x English user manual
Thermostat has a scale range of +5/+40 . To assist the adjust-ment, the thermostat has a LED which will glow RED when the heating is ON. The thermostat should be set to maximum temperature setting until the desired temperature of the room or floor is achieved. The control knob should then be turned back until the LED goes out. Fine adjustments can be made over the next 1/2 days to suit individual requirements.
A: If you want the parcel to be tracked , please choose the China post air mail, Singapore post, or Express
A: We have declared the packing detail on the description of each product, please check it, Thank you !
A: If you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
