| Place of Origin: | Jiangsu |
| Brand Name: | Saiko |
| Certification: | CE |
| Model Number: | E31.116 |
| Minimum Order Quantity: | 64PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | inner box: neutral packing with label; 64pcs/ctn |
| Delivery Time: | 10 workdays |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 10000PCS/WEEK |
| Type: | Floor Heating Systems | Voltage: | 220V/230V |
|---|---|---|---|
| Power Consumption: | 2W | Sensor: | NTC Internal/external Sensor |
| Setting Range: | 5-35℃ (Can Adjust To 5-90℃) | Switch Differential: | 0.5-10 Adjustable (Factory Setting: ±1℃) |
| Highlight: | electric underfloor heating thermostat,underfloor heating room thermostat |
||

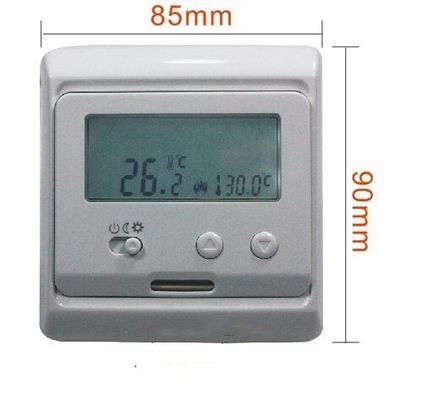

Heated Floor Digital Temperature Control Thermostat
Introduction
Heating thermostat with LCD screen, which has manual mode and energy saving mode. The thermostat is recommended for the control of electric heating device or on/off valve actuator in hydronic underfloor heating.
Application
For the control of warm-water(floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings...
Technical data
Voltage: 220V/230V
Power Consumption: 2W
Setting Range: 5-35℃(Can adjust to 5-90℃)
External limitation: 5...60℃(Factory setting: 35℃)
Sensor: NTC internal/external sensor
Switch differential: 0.5-10 ℃adjustable (Factory setting: ±1℃)
Ambient temperature:-5-50℃
Protection housing: IP20
Housing material: Anti-flammable PC
Selection Table
| Model Number | Current | Application |
| E31.113 | 3A | Built-in&floor sensor, floor limit sensor |
| E31.123 | 3A | Built-in&floor sensor, floor limt sensor, a potential-free output |
| E31.116 | 16A | Built-in&floor sensor, floor limit sensor |

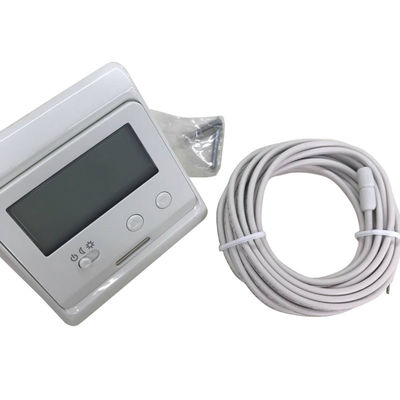

Package
Individual white box and outer carton, 64pcs in one carton
Wiring Diagram
