| Place of Origin: | Nanjing,China |
| Brand Name: | SAIKO |
| Certification: | CE |
| Model Number: | SK307 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1pc/inner box, 50pcs/carton |
| Delivery Time: | 5 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20000PCS/Month |
| Type: | HVAC Systems | Power Supply: | 230V 50/60Hz |
|---|---|---|---|
| Accuracy: | ±1°C | Function: | Heating / Cooling Room Temperature Controller |
| Size: | 86mm*86mm*13mm | Sensor: | NTC 10K |
| High Light: | fan coil unit thermostat,fan coil room thermostat |
||

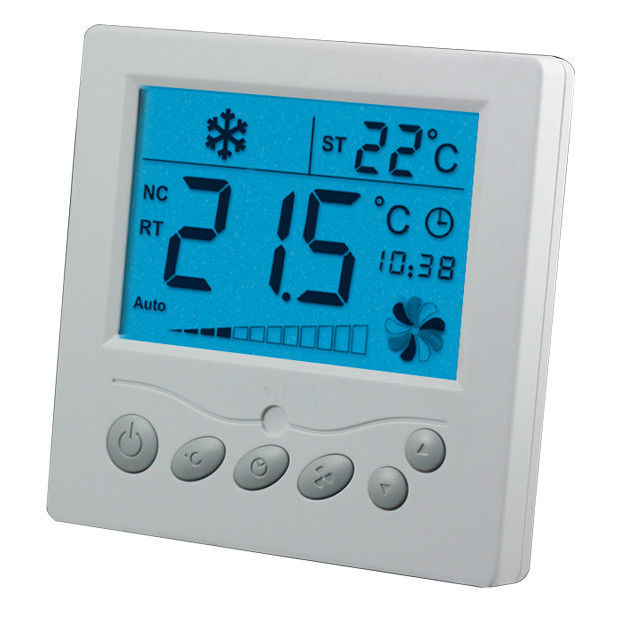

White Large LCD Display Cooling Fan Coil Thermostat
The SK307 series thermostat is a stand-alone microprocessor based thermostat with LCD display .
The thermostats are designed to control room temperature by way of on/off controlling the fan coil units(with or without motorized valves), air damper or electric heaters in heating, cooling and ventilation applications.
Features
• Large LCD, Luxurious appearance
• Microprocessor based
• Reliable separate power unit
• Clear back light illumination
• Time display and week day display
• Adjustable High/medium/low/Auto fan speed
• Heat / Cool selection
• Customizing available
Specification
| Item | Home Digital Non-Programmable Heat Cool Thermostat for HVAC system |
| Model number | SK307 |
| Size | 86mm*86mm*13mm |
| Color | white/customized |
| Fan Relay Amps inductive | 3A |
| Modulating output Voltage | 4 to 20mA or 0 to 10VDC |
| Input Voltage | 18-30VAC, 50/60 Hz |
| Room temperature setting range | 5°C~ 35°C (41°F~95°F) |
| Accuracy | ±1°C/ ±0.2°C |
| MOQ | 1000 pcs |
| Sample lead time | 3-4 days |
| LOGO processing | printing, emboss, laser |
| Packing details |
Carton size: 50x44x35cm N.W.:15kgs G.W.:19 kgs |
| Bulk lead time | 25 days after payment confirmed |
| Payment terms | T/T,Western Union,Paypal |
| Export port | FOB Shanghai |
| OEM/ODM |
1) Customized designs, materials & colors available 2) Special Design service provided by our RD department 3) We provide new program development |
| Standards | CE, RoHS, EN60730-2-9 |
| Main markets | Europe, Middle East |
