| Place of Origin: | Jiangsu |
| Brand Name: | Saiko |
| Certification: | CE,Rohs |
| Model Number: | SK206 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1pc/inner box, 100pcs/carton |
| Delivery Time: | 3-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20000pcs/month |
| Color: | Honeywell Original White | Material: | Best Qulaity Fresh PC ABS |
|---|---|---|---|
| Size: | 85*130*40mm | Outputs: | 2A Max |
| Setting Temperature: | KNOB | Mounting: | Flush Mouting& Wall Mounted |
| Highlight: | heating and cooling thermostat,fan coil room thermostat |
||

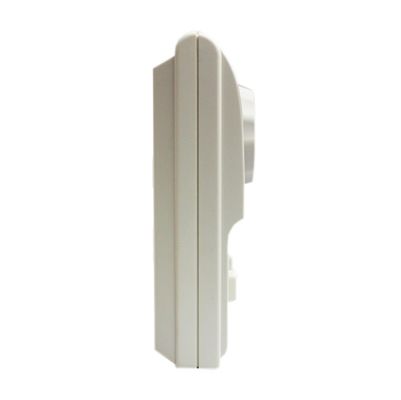

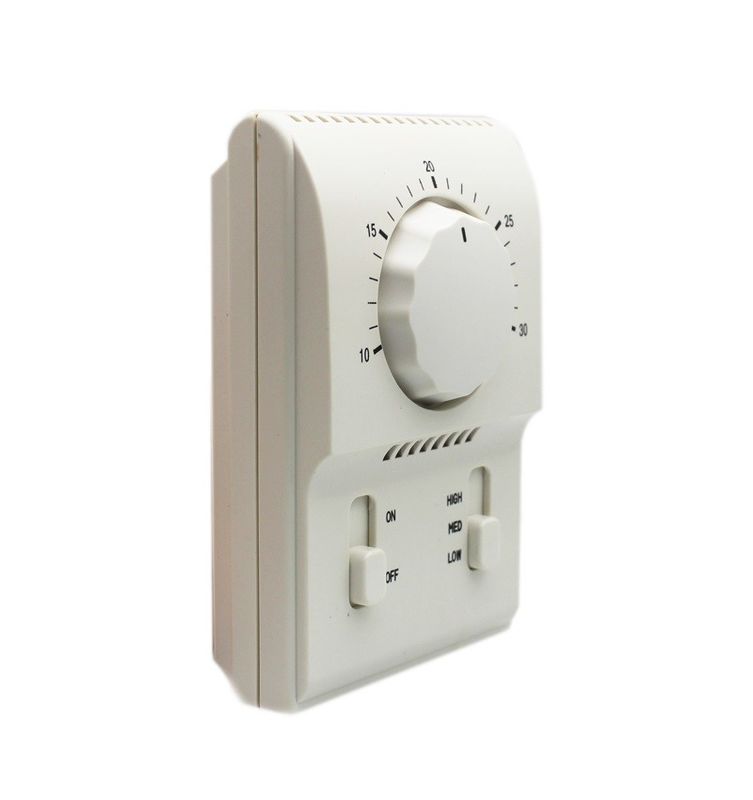

Mechanical Fan Coil Thermostat on off Switch Temperature Controller Air Conditioning Fresh PC ABS
SK206 suitable for temperature control for fan coil,electrically operated valve,power-driven air valve and power-driven air inlet of the central air condition with beautiful appearance,comfortable hand feel and stable performance;
Basic functions:manual switch control;refrigeration/modes;manually high/middle/low wind speed control;
Optional functions:single line(the fan continues as the valve stops),double lines(the fan stops as the valve stops) .
Technical Data
| Set TEMP range | 10-30 ℃ | Power supply | 220VAC±10%,50/60Hz 110VAC±10%,50/60Hz |
| Accuracy | ±1℃ | Rated current | 2A |
| Sensor Type | gas filled sensor | Power consumption | <2W |
| Ambient Condition | -5-55 ℃ | Operating Humidity | 5~90%RH (no condensing) |
| Color | White | Protection Class | IP20 |
| Housing Material | PC+ABS Flame Retardant plastics | Dimension ( W × H × D ) | 128*84*40mm |
| Certificate | CE & ISO9001 | Hole pitch | 60mm (standard) |
Function
| 1. Detective and display room temperature |
| 2.Room temperature settting |
| 3.control on/ off of heating and cooling equipments |
| 4. fan speed control |
| 5. control on/ff of motorized valves |
| 6. suitable for fan coil |
