| Place of Origin: | Jiangsu |
| Brand Name: | Saiko |
| Certification: | CE |
| Model Number: | SK51 |
| Minimum Order Quantity: | 64PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 64PCS/CTN (CTN SIZE:435*395*290mm) |
| Delivery Time: | 3-5 workdays |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 3000PCS/WEEK |
| Type: | HVAC Systems | Voltage: | AC230V |
|---|---|---|---|
| Current Load: | 16A Floor Heating Thermostat | Setting Range: | +5~+90℃ Floor Heating Thermostat |

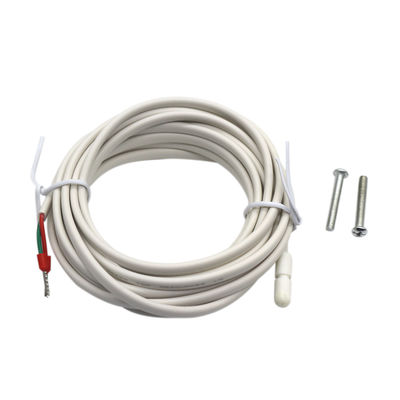

| Floor Sensor: | Rubber-thermoplastic NTC Sensor | Housing Material: | Self-extinguishing PC |
| High Light: | electric underfloor heating thermostat,underfloor heating room thermostat |
||

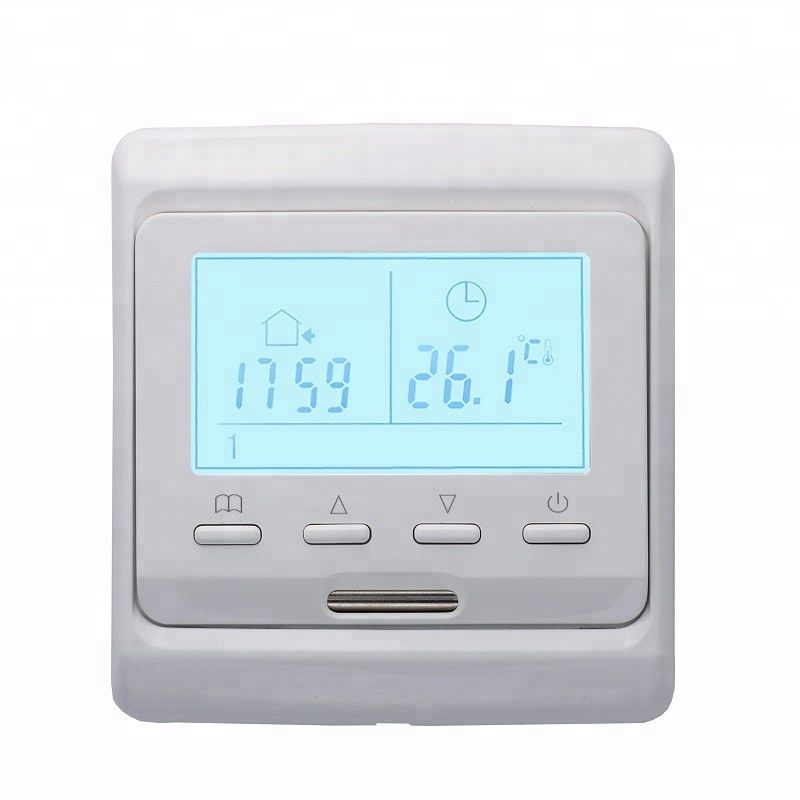

Digital Weekly Programming Heated Floor thermostat With Floor Sensor
Introduction
SK51 Weekly circulation digital programming thermostat with LCD screen , which has 6-event everyday . Manual mode and programme mode could be selected .The thermostat is recommended for control of electric heating devices or on/off valve actuator use in hydronic floor heating .
electric floor heating thermostat
digital thermostat
room heating thermostat
electronic heating thermostat
thermostat control
electric floor heating thermostat( digital thermostat, room heating thermostat, electronic heating thermostat, thermostat controller)
Technical data
| Power Supply | AC200-240VAC 50/60HZ |
| Accuracy | ±0.5ºC |
| Probe sensor | NTC |
| Power Consumption | <0.3W |
| Load current | 3A(water heating),16A(electric heating) |
| Temperature Adjustable Range | 5°C~90°C( can adjust to 35°C~90°C) |
| Limit Temperature Range | 5°C~60°C( factory setting: 35°C) |
| Output | Switch relay |
| Insulating condition | Normal environment |
| Running program | Set per 1 week as a cycle |
| Installation | Wall mounted |
| Application | Water Floor Heating System |
| Electric Floor Heating System | |
| Infrared Heater System | |
| Certificate | CE,RoHS |
Sensor Failure:
E0:Built-in sensor short-circuited or disconnected
E1:Exernal sensor short-circuited or desconnected.
When shows E0/E1 error, thermostat must be checked till the error is eliminated
Dimensions:mm
Explanation of symbols
